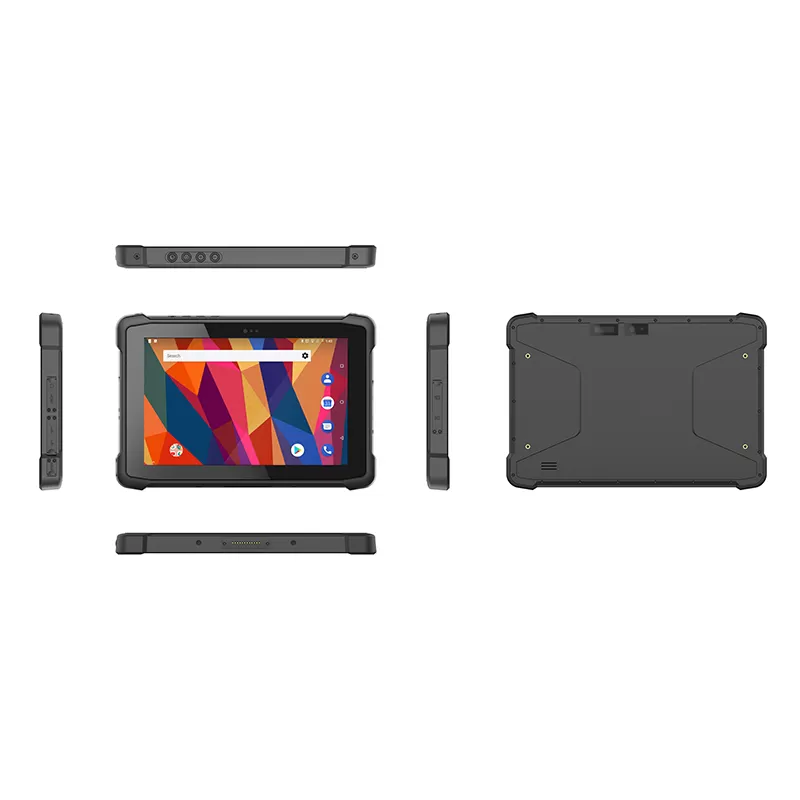

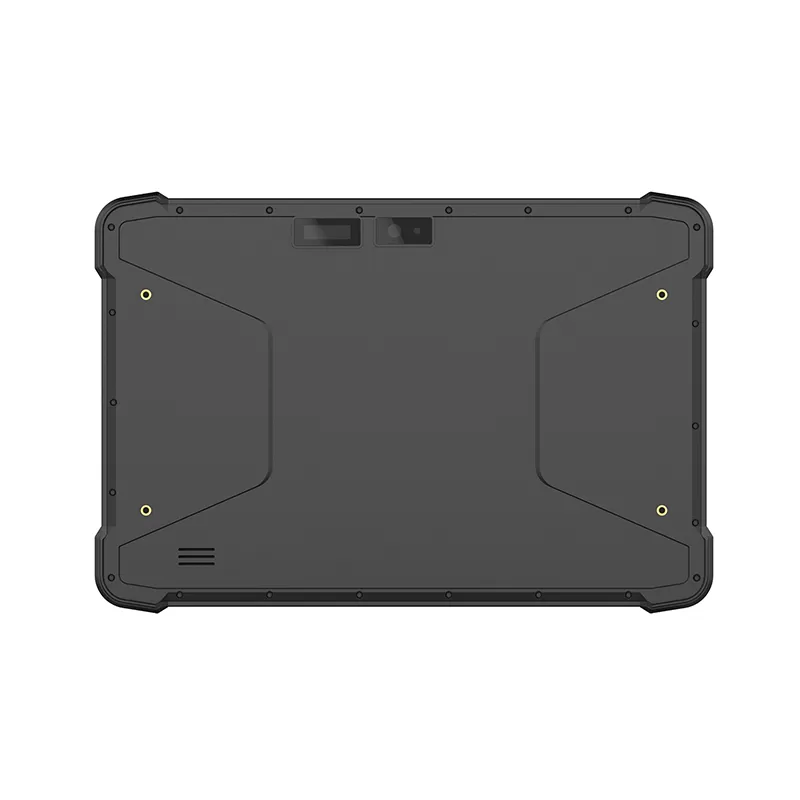

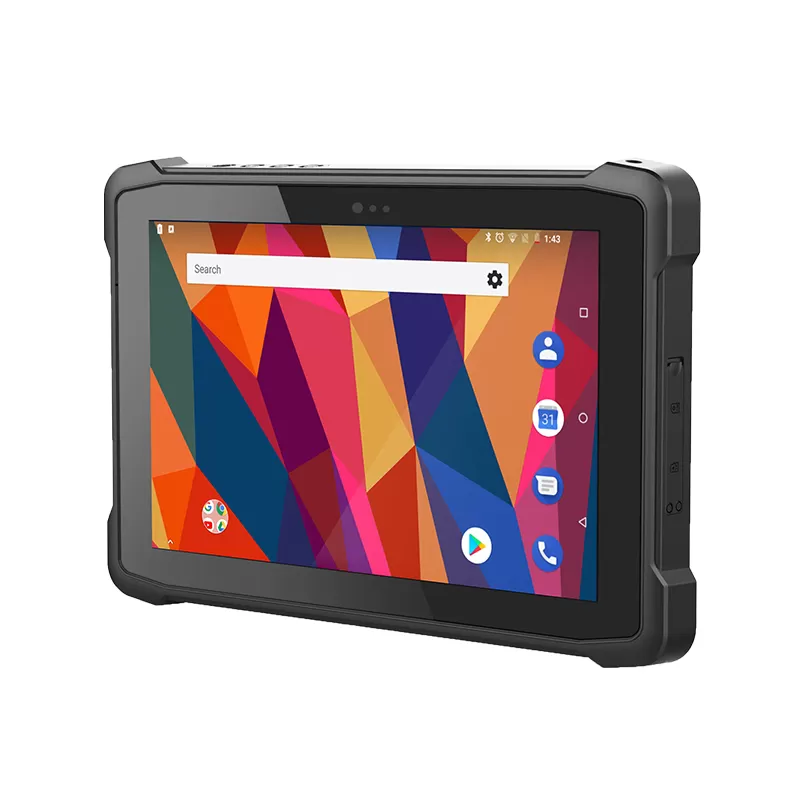

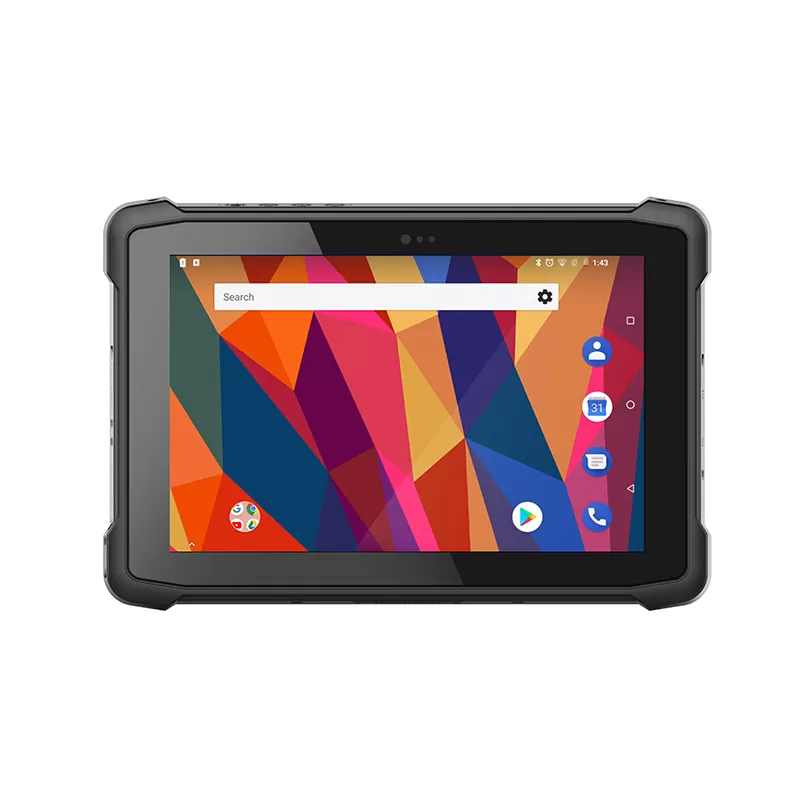

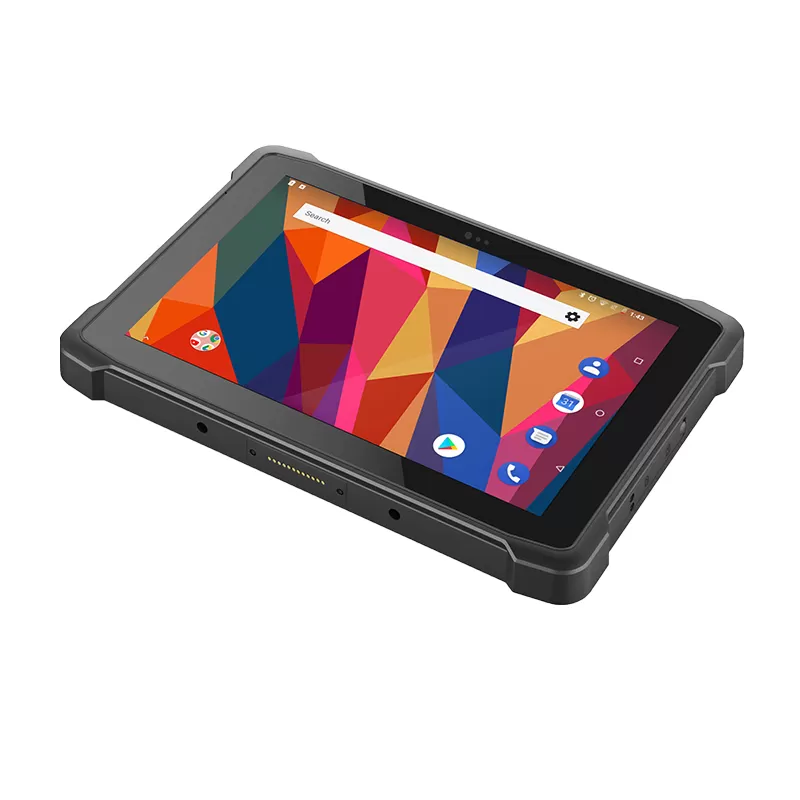

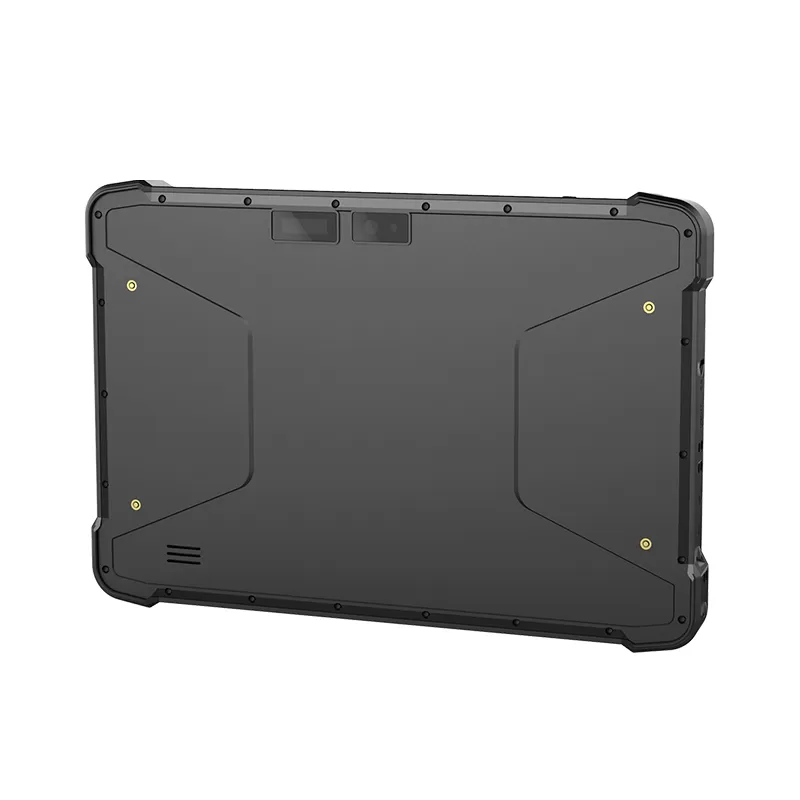

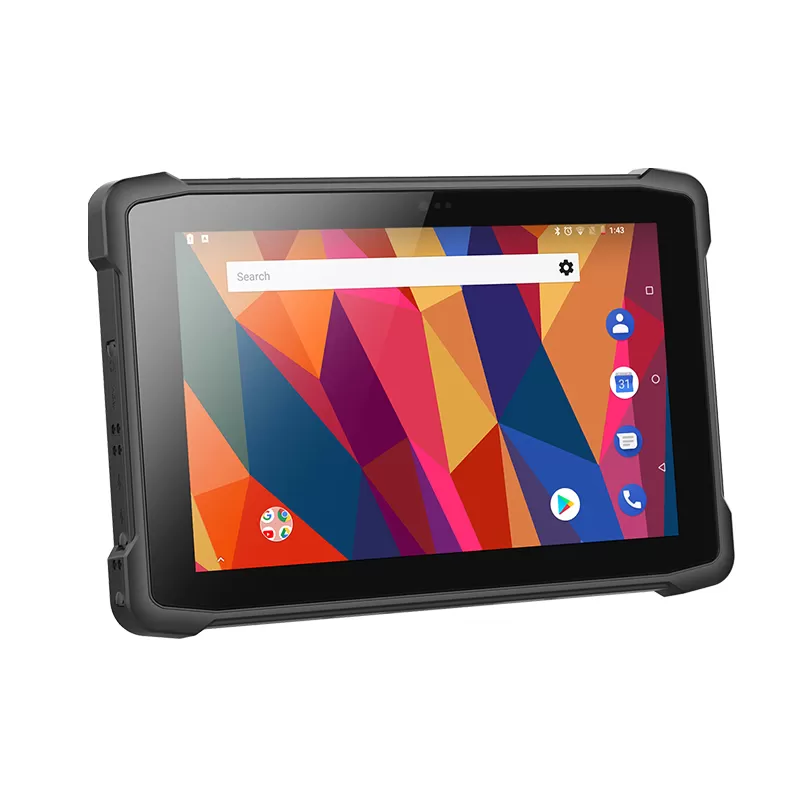

Model: SATA-T11SGP
Features:
• Support for Android 12 system.
• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.
• 8000mAh battery, 8 hours of machine endurance.
• IP65 high protection level, in accordance with MIL-STD-810G.
• Support GPS, Glonass, Beidou, more accurate positioning.
• Support 13 million pixel auto focus camera, easy to collect images and video information.
• Support 1D/2D, NFC and other functional modules for Optional.
| PC | |
| CPU | ARM(Octa-Core), 2.2GHz |
| OS | Android 12 |
| RAM | 8GB |
| ROM | 128GB |
| Network connections | |
| WIFI | 2.4G+5.8G dual frequency, WiFi 802.11(a/b/g/n/ac) |
| Bluetooth | BT5.2 (BLE) |
| 2G/3G/4G | GSM: 2+3+5+8 |
| WCDMA: 1+2+5+8 | |
| TD-S: 34+39 | |
| TDD: 38+39+40+41N(2535mhz~2655mhz) | |
| TDD: 38+39+40+41N(2535mhz~2655mhz) | |
| Basic parameters | |

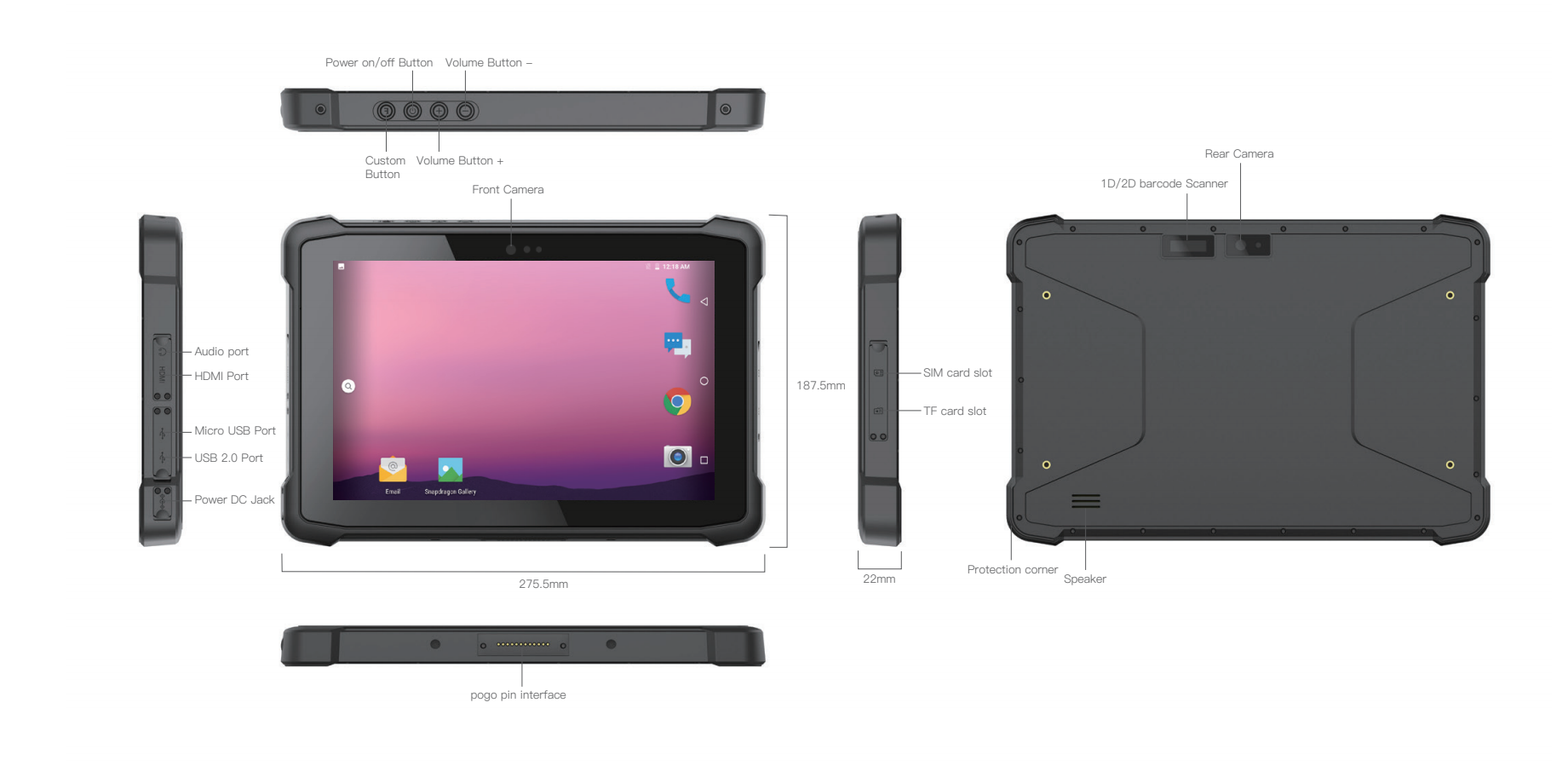

| Dimension | 275.5 x 187.5 x 22mm |
| Weight | device unit 1000g |
| Device Color | Black |
| LCD | 10.1 inch IPS 16:10, 800*1280 |
| Touch Panel | 10 points Capacitive, G+G |
| Camera | Front 5.0MP Rear 13.0MP |
| I/O | USB 2.0 x 1, Micro USB x 1 |
| SIM Card x 1, TF Card x 1 | |
| HDMI 1.4a Type C x 1 | |
| 12pins Pogo Pin x 1 | |
| Φ3.5mm standard earphone jack x 1 | |
| Φ3.5mm DC jack x 1 | |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/3A |
| GPS | support GPS, Glonass |
| Battery | |
| Capacity | 3.7V/8000mAh |
| Type | Built in polymer lithium ion battery |
| Endurance | 8hrs (default 50% volumn, default 200 lumens brightness, play 1080P HD video) |
| Reliability | |
| Operate Temperature | -10 °C ~ 50 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP65 |
| Optional modules | |
| NFC | Support ISO/IEC 14443A protocol, Card reading distance: 3-5cm |
| 1D | MOTO SE655E100R, Optical Position: 5mil, Scan speed: 50 times/s |
| 2D | Honeywell N3680, Optical Position: 5mil, Scan speed: 50 times/s |
