Rugged Tablet

Home > Products > Rugged Product > Rugged Tablet > 10.1" IP65 i5-1235U/i5-1255U Rugged tablet support MIL-STD-810G GPS/Beidou/GLONASS, NFC/1D/2D Optional

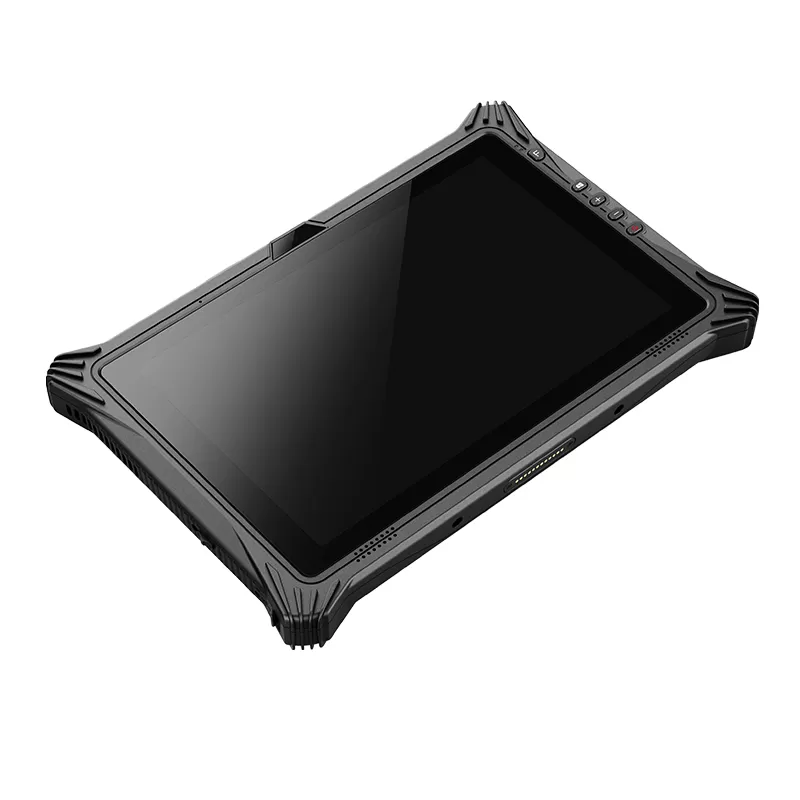

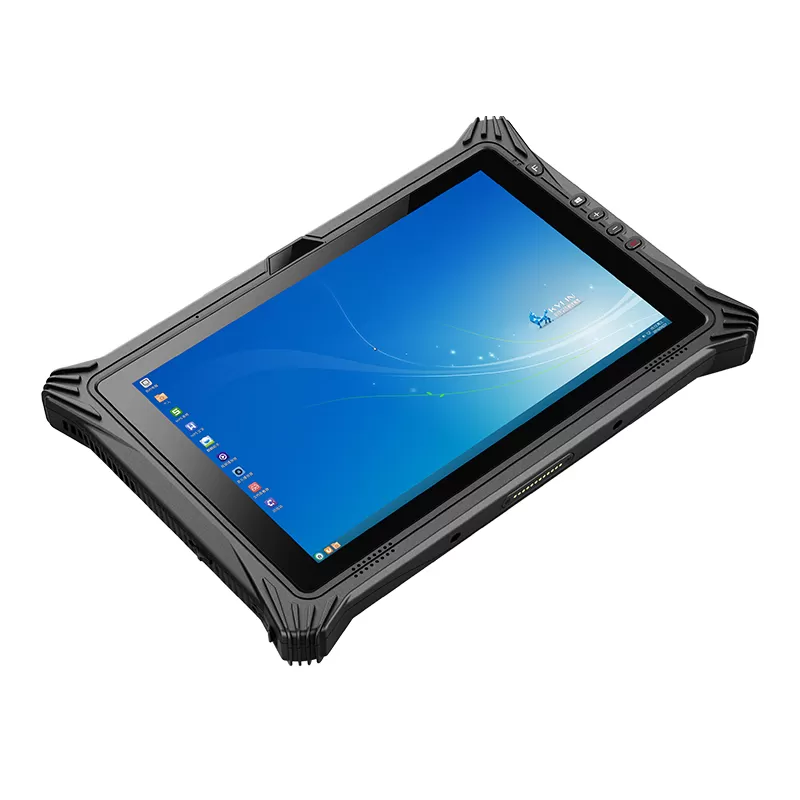

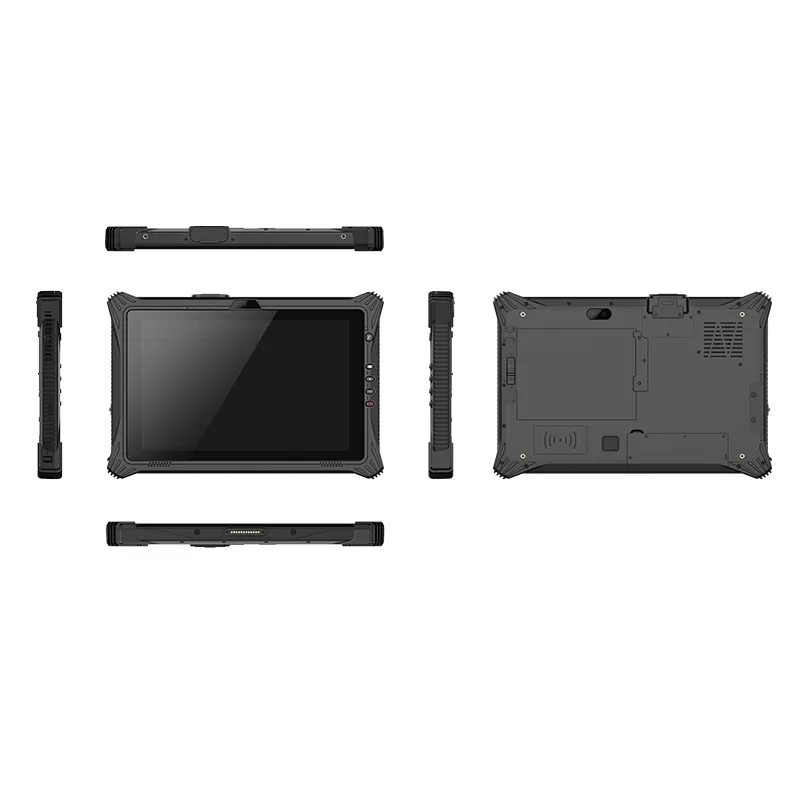

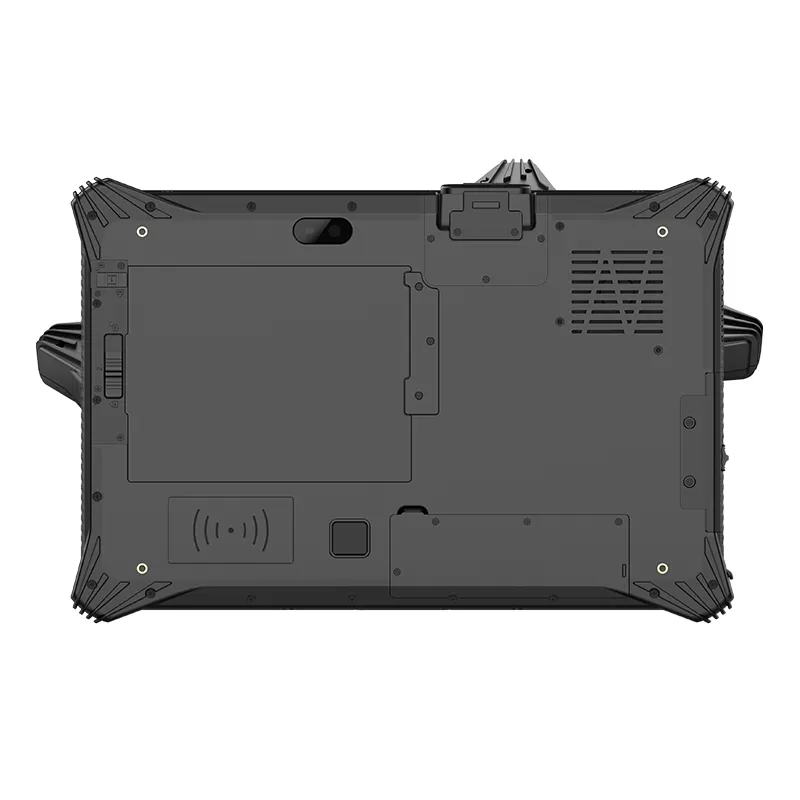

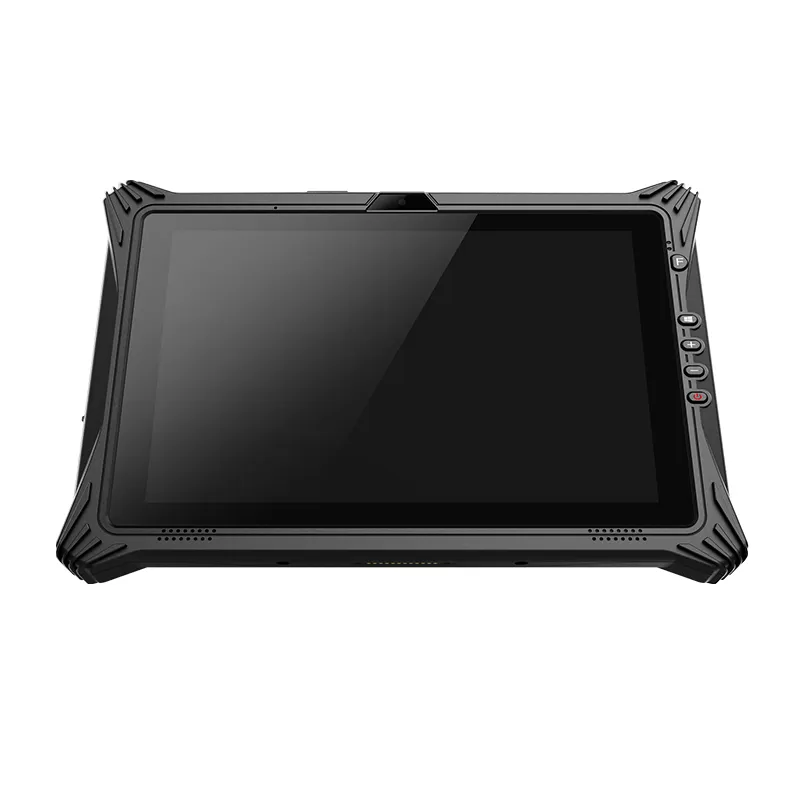

10.1" IP65 i5-1235U/i5-1255U Rugged tablet support MIL-STD-810G GPS/Beidou/GLONASS, NFC/1D/2D Optional

Model: SATA-I10A

Features:

• Support for Win 7, Win 10 system.

• Intel® Core™ i5-1235U, greatly improved performance.

• Equipped with built-in 860mAh, detachable 5000mAh polymer lithium ion battery.

• IP65 high protection level, in accordance with MIL-STD-810G.

• Support GPS, Beidou, GLONASS, more accurate positioning.

• Support 8 million pixel auto focus camera, easy to collect images and video information.

• Support 1D/2D, NFC and other functional modules for free selection.


                                                                               PC
CPUIntel® Core™ i5-1235U
OSWindows 10
RAM8GB/16GB DDR4L
ROM128GB/256GB/512GB
                                                                 Network connections
WIFI2.4G+5G dual frequency, WIFI 802.11(a/b/g/n/ac)
BluetoothBT4.2 (BLE) class1 transmission distance: 10m
3G/4GLTE FDD: B1/B3/B7/B8/B20/B28A
WCDMA: B1/B8
GSM: B3/B8
                                                                      Basic parameters

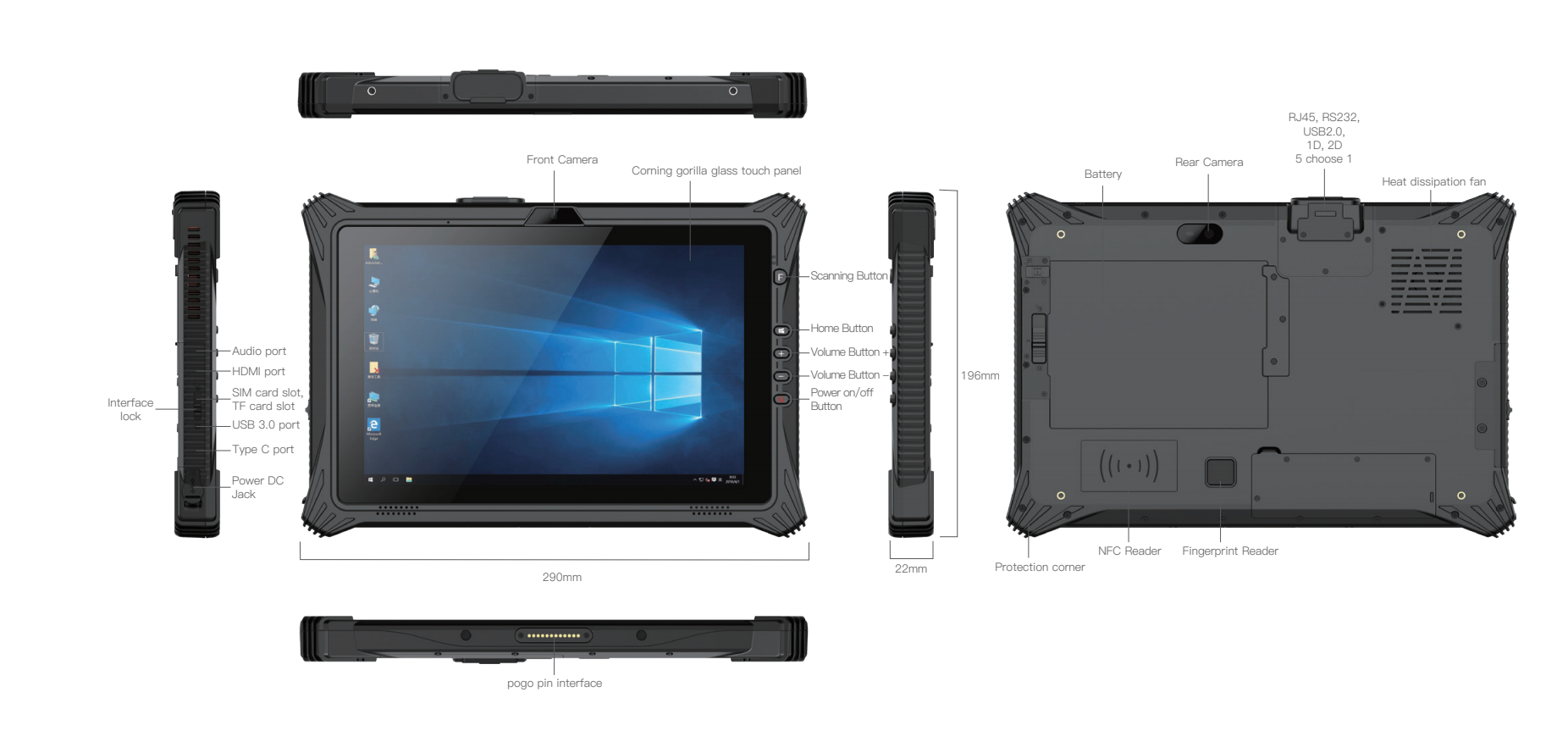

Dimension290x196x22mm
WeightDevice unit 1140g
Device ColorBlack
LCD10.1 inch IPS 16:10, 1920*1200
Touch Panel10 points Capacitive, G+G
CameraFront 2.0MP Rear 8.0MP
I/OUSB 3.0 x 1, Type C x 1
SIM Card x 1, TF Card x 1
HDMI 1.4a x 1
12pins Pogo Pin x 1
Φ3.5mm standard earphone jack x 1
Φ5.5mm DC jack x 1
PowerAC100V ~ 240V, 50Hz/60Hz output DC 19V/3.42A
GPSSupport GPS, glonass
NFCOptional NXP100
                                                                          Battery
Capacity7.4V/860mAh
TypeBuilt-in Li-polymer battery brightness
Endurance30mins ( 50% volume sounds, 200 lumens, 1080P HD video display by default )
                                                                           Battery

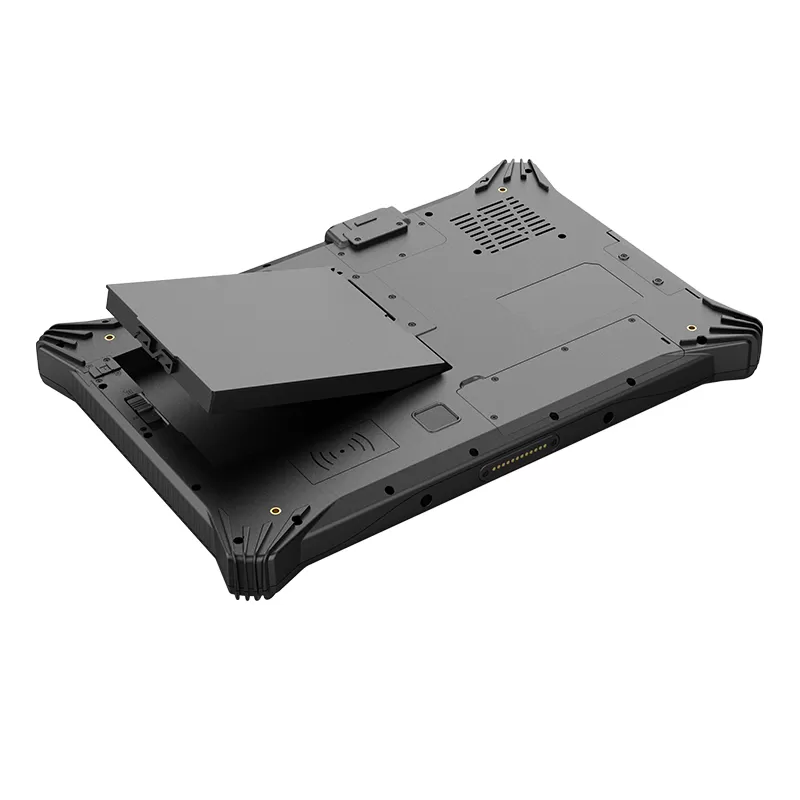

Capacity7.4V/5000mAh
TypeRemovable Li-polymer battery
Endurance8hrs ( 50% volume sounds, 200 lumens brightness, 1080P HD video display by default)
                                                                      Reliability
Operate Temperature-20 °C ~ 60 °C
Store Temperature-30 °C ~ 70 °C
Humidity95% Non-Condensing
IP GradeIP65
                                                       Module extension (5 choose 1)
Ethernet interfaceRJ45(10/100M) x 1
Serial portDB9(RS232) x 1
USB2.0USB 2.0 x 1
1DHoneywell N6551/Optical resolution: 5mil/, scan speed: 50 times/s
2DHoneywell N3680, Optical Position: 5mil, Scan speed: 50 times/s
                                                             Optional Accsessory
AccsessoryDocking Charger, Hand-strap, Carry handle, Vehicle Mount, 19V Adapter,
Removable Battery, Stylus
