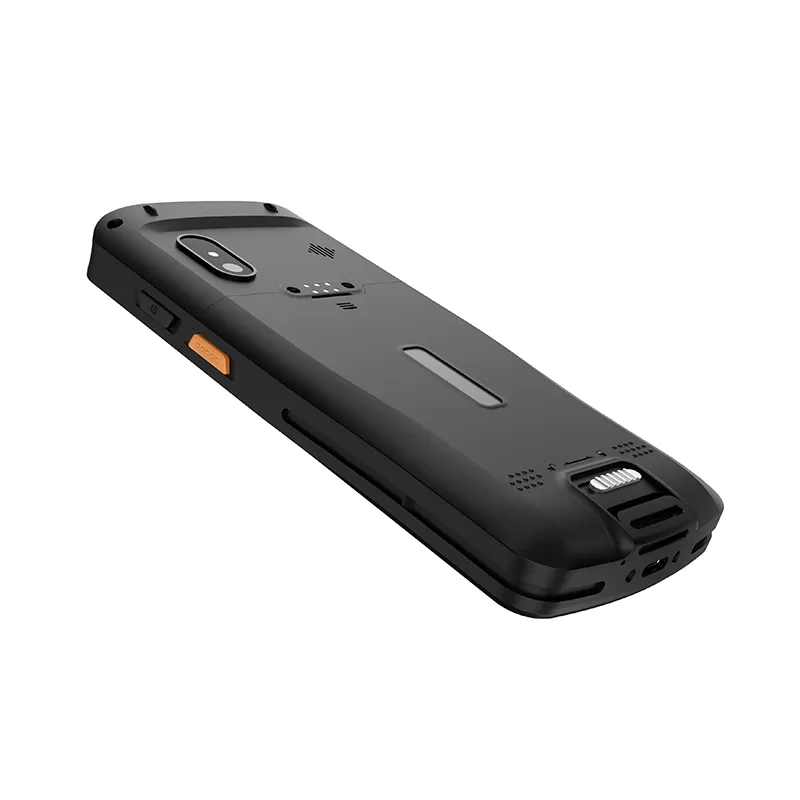

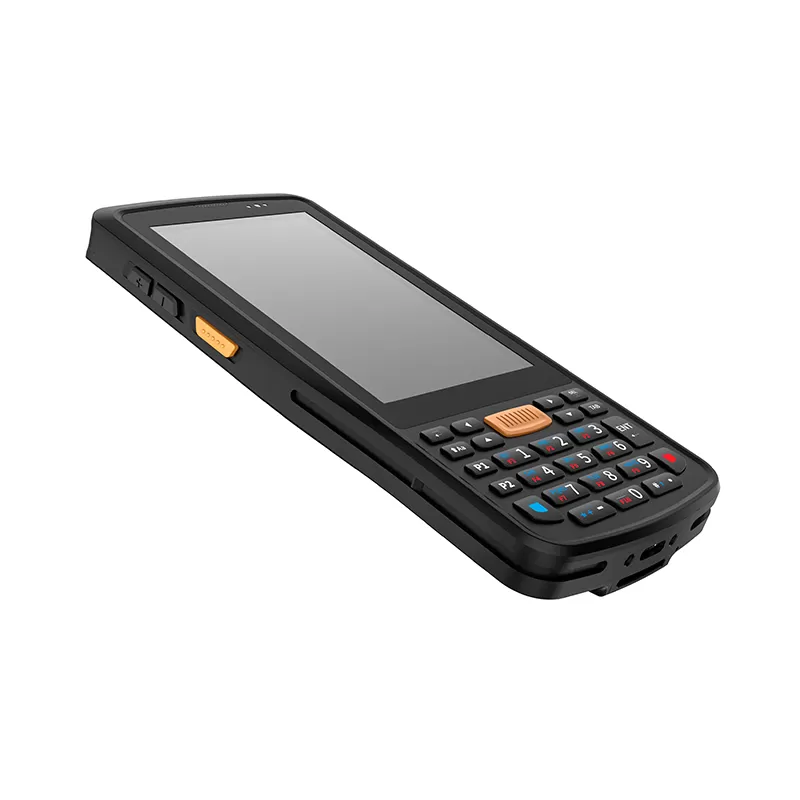

Model: SATA-T40AH
Features:
• Support for Android 11 system.
• Integrated 4G all network communication, WiFi, Bluetooth and other communication modes.
• Equipped with 4500mAh large capacity battery, the machine has a endurance of 7 hours.
• IP65 high protection level, in accordance with MIL-STD-810G.
• Support GPS, Glonass, beidou(G+G+B), more accurate positioning.
• With rear 13MP auto focus camera, you can easily collect your images and video information.
• Support 1D / 2D, NFC and other functional modules to meet the application needs of multiple industries.
| PC | |
| CPU | MTK OCTA Core |
| OS | Android 11 |
| RAM | 4GB LPDDR4 |
| ROM | 64GB |
| Network connections | |
| WIFI | 2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac) |
| Bluetooth | BT5.0 LE |
| 3G/4G | GSM(B2/3/5/8) |
| WCDMA(B1/B2/5/8) | |
| TDS(B34/B39) | |
| FDD(B1/2/3/4/5/7/8/13/17/20/28AB) | |
| TDD(B38/39/40/41) | |
| Basic parameters | |
| Dimension | 162.4 x 72.8 x 19.4mm |
| Weight | TBD |
| Device Color | black |

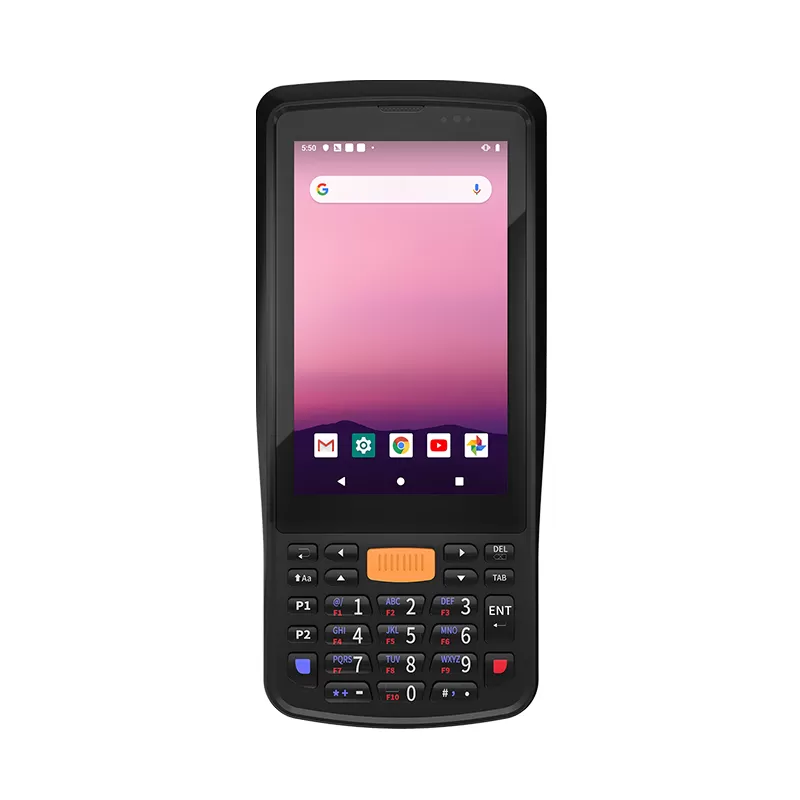

| LCD | 4inch IPS 16:9, 480*800, 300Nit |
| Touch Panel | 5 points Capacitive, G+FF |
| Camera | Rear 13.0MP |

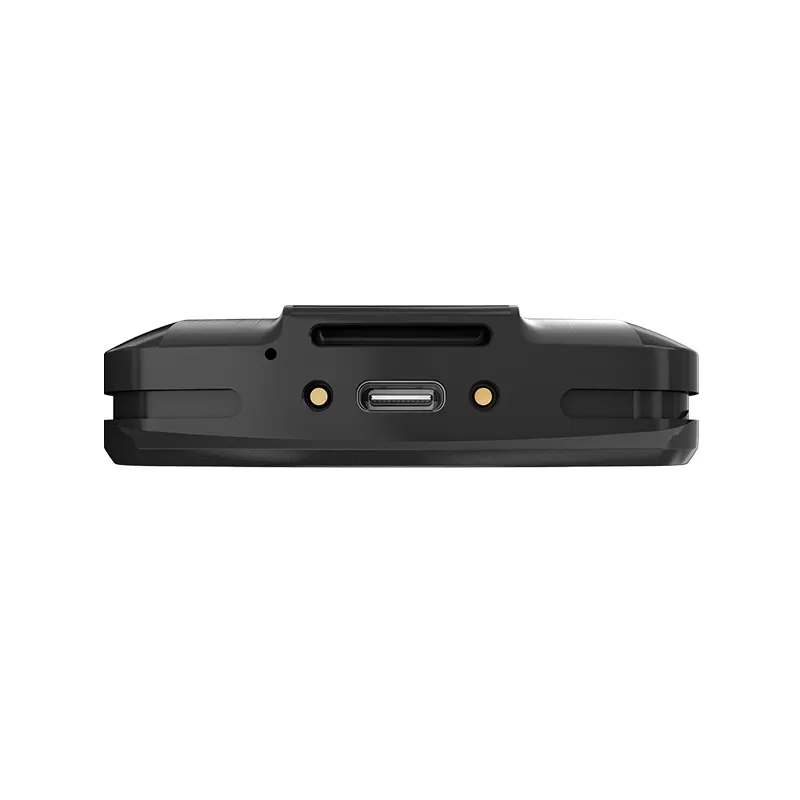

| I/O | Type C x 1 |
| TF Card x 1 max: 128G, SIM Card x 1 | |
| (Two out of three card holder) | |
| 6Pin back shell x 1, 2Pin machine buttom x 1 | |
| Power | AC100V ~ 240V, 50Hz/60Hz output DC 5V/2A |
| GPS | support GPS, Glonass, beidou(G+G+B) |
| Battery | |
| Capacity | 3.8V/4500mAh |

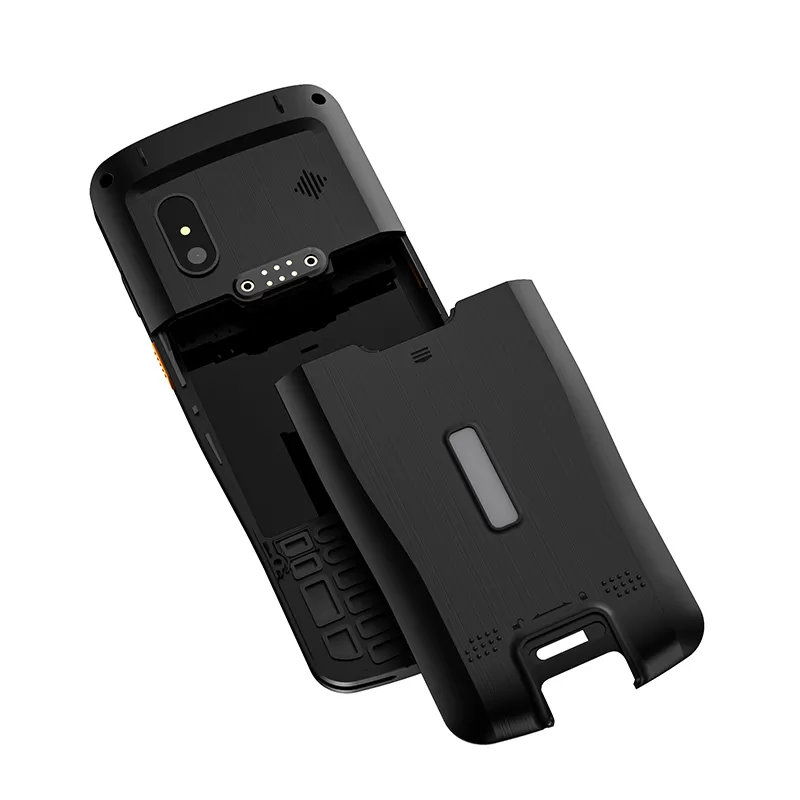

| Type | External removable lithium ion battery |
| Endurance | 7hrs (default 50% volumn, default 200 lumens, brightness，play1080P video) |
| Reliability | |
| Operate Temperature | -10 °C ~ 50 °C |
| Store Temperature | -20 °C ~ 60 °C |
| Humidity | 95% Non-Condensing |
| IP Grade | IP65 |
| Optional modules | |
| NFC | Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol under ISO/IEC |

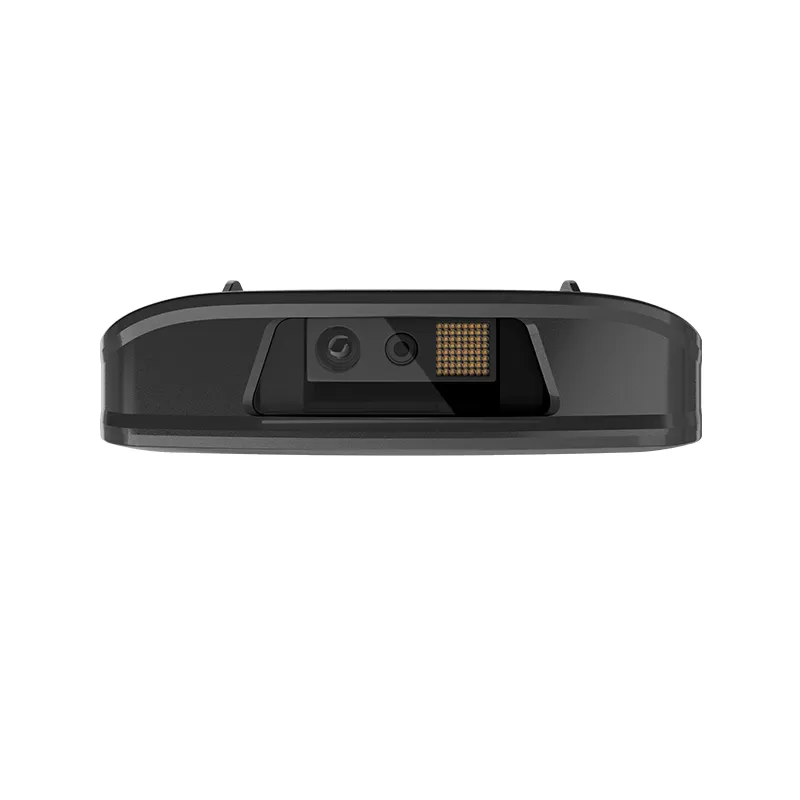

| 1D/2D | Serial port & MIPI, The scan head supports 3680 4710 6703 |
