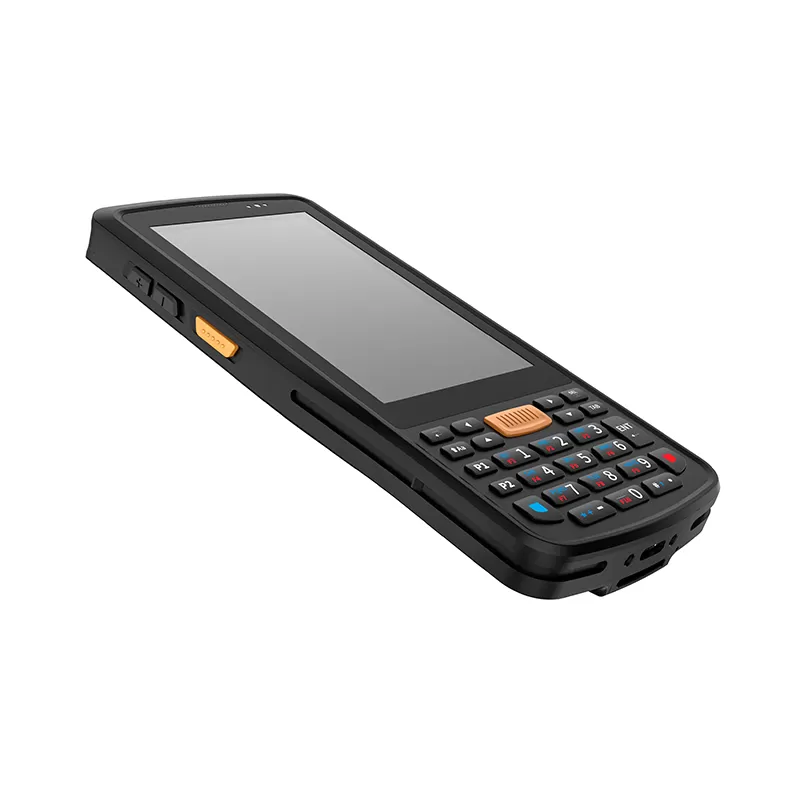

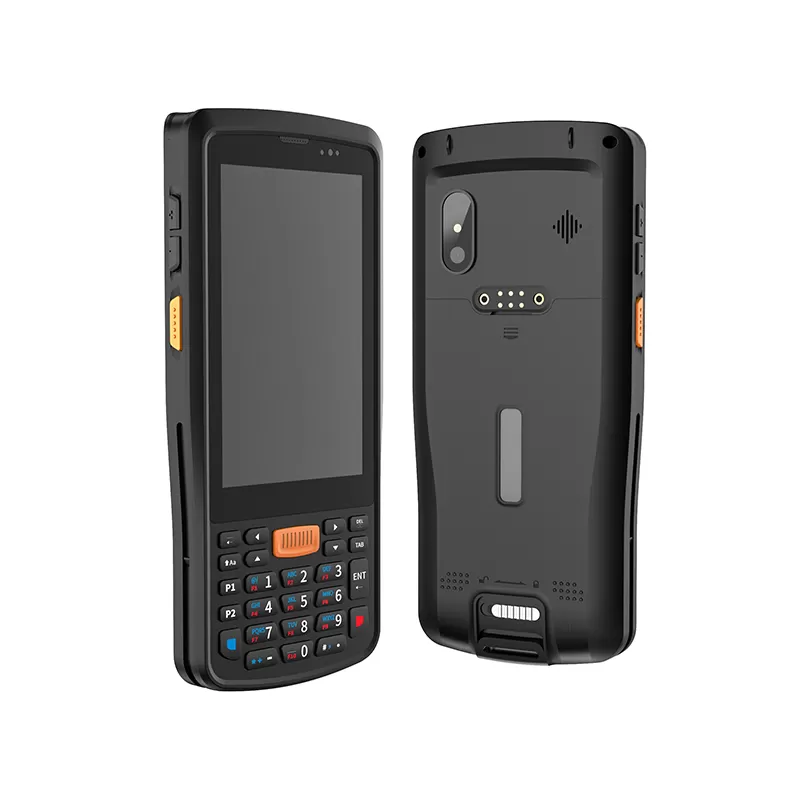

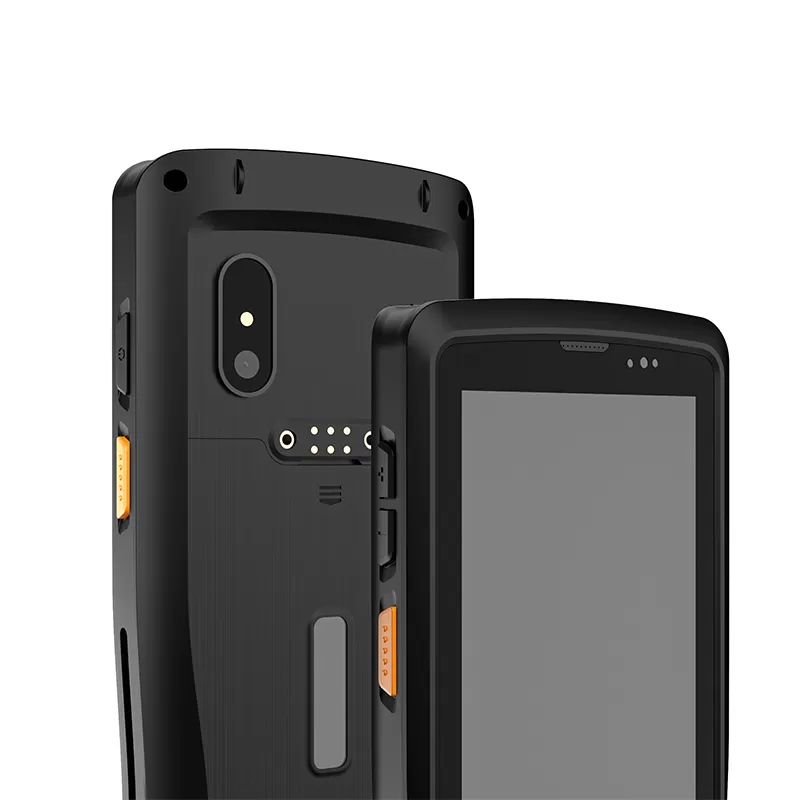

5 inch rear 13MP front 5MP IP65 Android 11 rugged terminal equipped with 4000mah 10hours endurance

Model: SATA-T50NF

Features:

• Support for Android 11 system.

• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

• Equipped with 4000mAh large capacity battery, the machine has a endurance of 10 hours.

• IP65 high protection level, in accordance with MIL-STD-810G.

• Support GPS, Glonass, Beidou(G+G+B), more accurate positioning.

• Support front 5 million and rear 13 million pixel auto focus camera.

• Support 1D / 2D, NFC and other functional modules to meet the application needs of multiple industries.


                                                    PC
CPUMTK OCTA Core
OSAndroid 11
RAM4GB LPDDR4X
ROM64GB
                                       Network connections
WIFI2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac)
BluetoothBT5.0 LE
3G/4GGSM(B2/3/5/8)
WCDMA(B1/B2/5/8)
TDS(B34/B39)
FDD(B1/2/3/4/5/7/8/13/17/20/28AB)
TDD(B38/39/40/41)
                                          Basic parameters
Dimension157.4 x 74.6 x 24.2mm
Weightdevice unit 260g
Device Colorblack
LCD5inch IPS 16:9, 720*1280, 300 Nit
Touch Panel5 points Capacitive, G+FF
CameraFront 5MP Rear 13MP
I/OMicro USB 2.0 x 1
SIM Card x 1
TF Card x 1
Charging function x 1
Φ3.5mm standard earphone jack x 1
PowerAC100V ~ 240V, 50Hz/60Hz output DC 5V/2A
GPSsupport GPS, Glonass, beidou(G+G+B)
                                                  Battery
Capacity3.8V/4000mAh
TypeLi_polyment, removeable battery
Endurance10.5hrs (default 50% volumn, default 200 lumens brightness, play 1080P video)
                                              Reliability
Operate Temperature-10 °C ~ 50 °C
Store Temperature-20 °C ~ 60 °C
Humidity95% Non-Condensing
IP GradeIP65
                                                               Optional modules
NFCSupport ISO/IEC 14443A/14443B/15693/18092/mifare protocol,Reading distance: 40mm

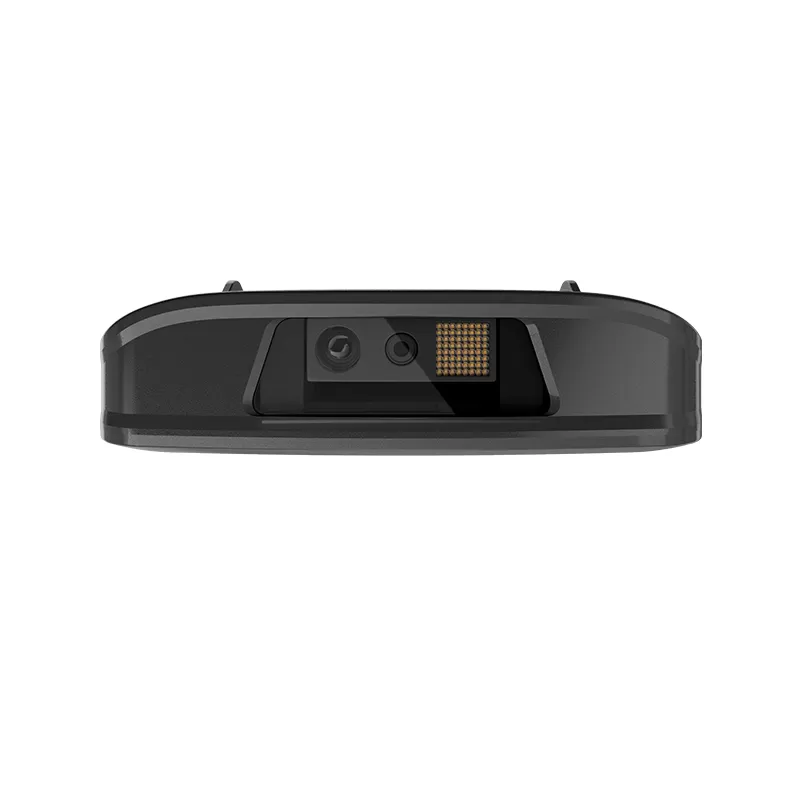

1D/2DSupport SE4710, Optional N3680/ N6703
