Rugged Terminal

Home > Products > Rugged Product > Rugged Terminal > 5.7 inch Android 10 IP67 rugged terminal with rear 16MP front 13MP 5000mah

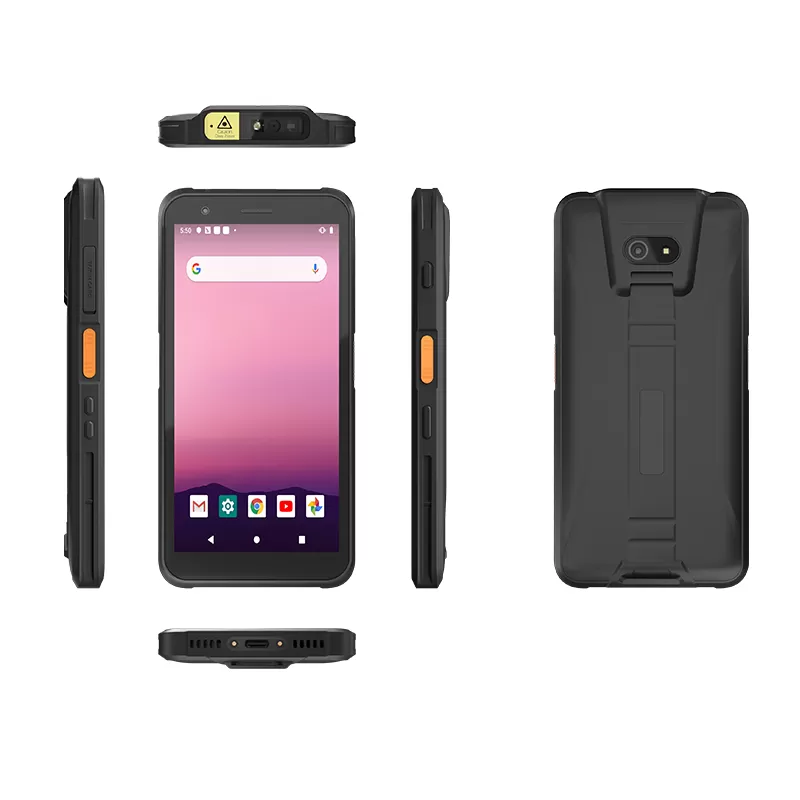

5.7 inch Android 10 IP67 rugged terminal with rear 16MP front 13MP 5000mah

Model: SATA-T60YL

Features:

• Support for Android 10 system.

• Integrated 3G / 4G all network communication, WiFi, Bluetooth and other communication modes.

• Equipped with 5000mAh large capacity battery, the machine has a endurance of 7 hours.

• IP67 high protection level, in accordance with MIL-STD-810G.

• Support GPS / GLONASS / Beidou / Galileo, more accurate positioning.

• Equipped with front 13 million and rear 16 million pixel auto focus camera.

• Support 1D/2D, NFC and other functional modules to meet the application needs of multiple industries.


                                                                     PC
CPUMTK OCTA Core
OSAndroid 10/GMS
RAM4GB LPDDR4
ROM64GB
                                                            Network connections
WIFI2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac)
BluetoothBT5.0 LE
3G/4GGSM 2/3/5/8
WCDMA 1/2/4/5/8
TDD B38/B40/B41
FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/
B19/B20/B28A/B28B/B18/B25/B26/B66
                                                               Basic parameters
Dimension159.7 x 80 x 16.3mm
Weight275g
Device ColorBlack
LCD5.7 inch IPS 18:9, 720*1440, 430 Nit
Touch Panel5 points Capacitive, G+FF
CameraFront 13.0MP Rear 16.0MP

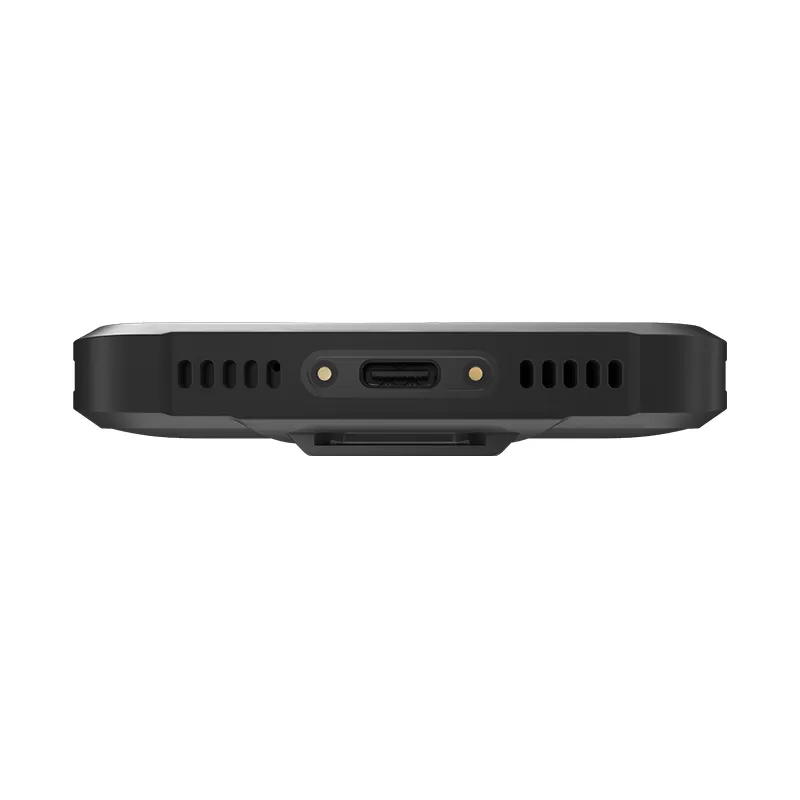

I/OType C x 1
TF Card x 1 max: 128G, SIM Card x 1
(Two out of three card holder)
PowerAC100V ~ 240V, 50Hz/60Hz output DC 5V/2.5A
GPSSupport GPS, GLONASS, Beidou, Galileo
                                                                    Battery
Capacity3.8V/5000mAh
TypeBuilt-in Lithium-ion polymer battery
Endurance7hrs (Default 50% volumn, Default 200 lumens brightness, Play 1080P video)
                                                                     Reliability
Operate Temperature-10 °C ~ 50 °C
Store Temperature-20 °C ~ 60 °C
Humidity95% Non-Condensing
IP GradeIP67
                                                                Optional modules
NFCSupport ST21NFCDXBGARA7

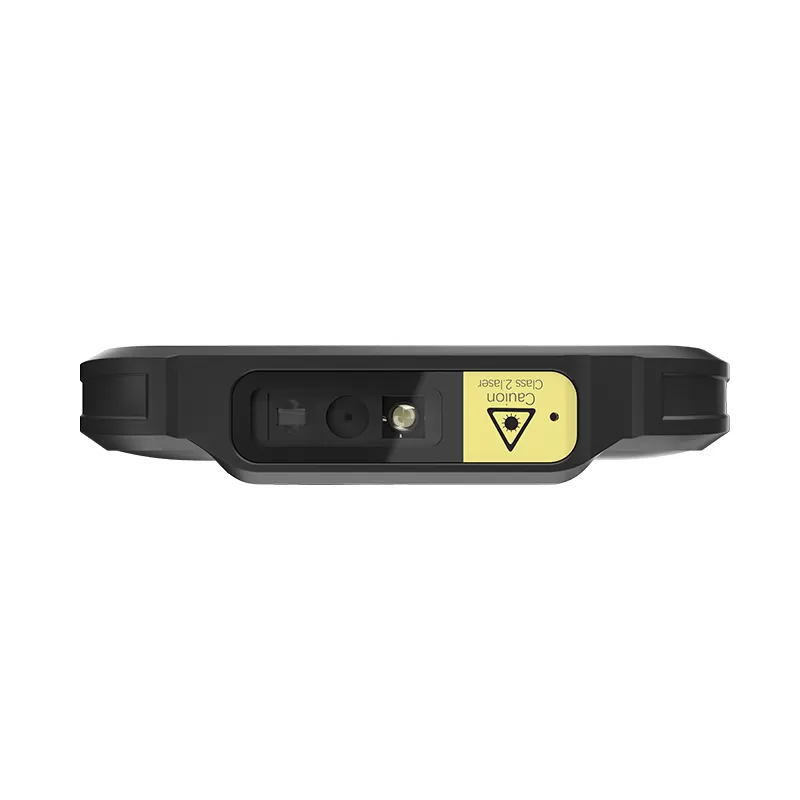

1D/2DSupport Honeywell6703, Optional SE4710


5.7 inch Android 10 IP67 rugged terminal with rear 16MP front 13MP 5000mah
