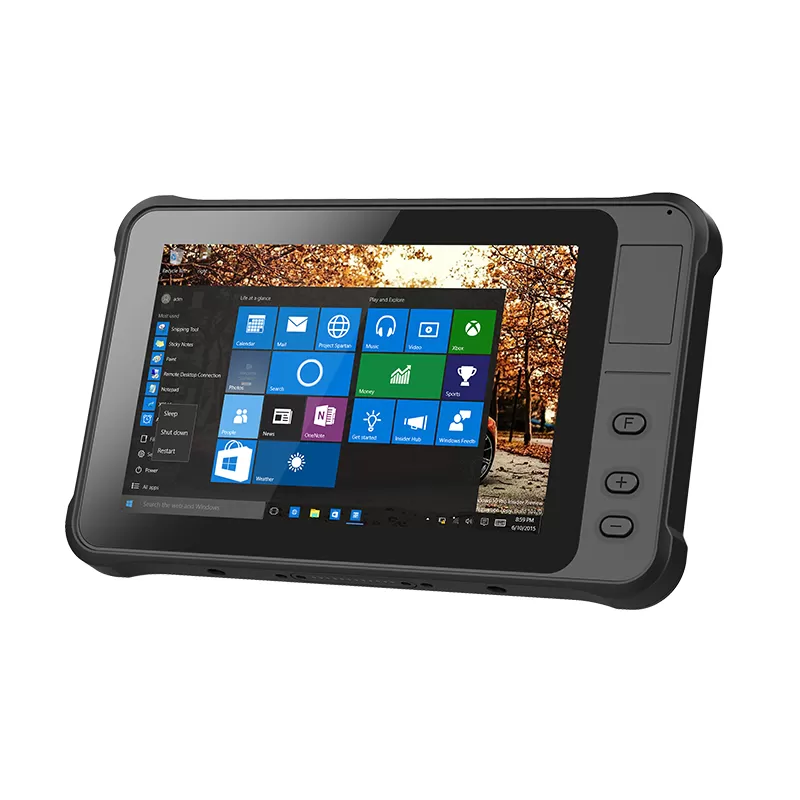

7 inch Windows 1000cd/m2 5 points Capacitive IP65 waterproof rugged terminal

Model: SATA-I75BPH

Features:

• Support for Windows 10 Home/ Pro/ IOT  system.

• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

• Equipped with 7500mAh large capacity battery, the machine has a endurance of 6 hours.

• IP65 high protection level, in accordance with MIL-STD-810G.

• Support GPS/GLONASS/Beidou/Galileo, more accurate positioning.

• Equipped with front 2.0 million and rear 5.0 million pixel auto focus camera.

• Support 1D/2D, NFC and other functional modules to meet the application needs of multiple industries.


                                                                       PC
CPUIntel Cherrytrail Z8350, 1.44Ghz-1.92GHz
GPUIntel® HD Graphics
RAM4GB
SSD64GB EMMC
Indicator lightCharging indicator light,which is red flash when low power,keeping on red light when power more than 20% , ,keeping on green light when full charged .
L/P-SensorLight/Proximity sensors
G_sensorGravity acceleration sensor
WIFIWIFI 802.11(ac/a/b/g/n)   dual frequency 2.4G+5.8G WIFI
BluetoothBT4.2 (BLE) class 1, Transmission distance: 10m
3GOptional: H350 GSM/GPRS/EDGE Band(MHz):900/1800;WCDMA Band(MHz):900/2100
4GEC25-E : LTE FDD: B1/B3/B5/B7/B8/B20 LTE TDD: B38/B40/B41 WCDMA: B1/B5/B8 GSM: B3/B8
GPSU-BLOX M8Q GNSS.Support GPS/Beidou/glonass
NFCOptional: NXP NFC 13.56MHz Support ISO/IEC 14443A/14443B/15693/18092/mifare protocol, Card reading distance: 4cm
CameraFront 2.0MP, rear 5.0MP Auto focus with flash
Speaker8Ω/0.8W waterproof BOX speaker*1
MicSensitivity:-42db, output impedance 2.2kΩ
Operation SystemWindows 10 Home/ Pro/ IOT 64bit
                                                                    LCD panel
Panel size7"
Resolution800*1280 IPS
Aspect ratio16:10
Brightness (cd/m²)1000 cd/m2
                                                                    Touch panel
Touchscreen Type5 points capacity TP,G+G, support touch with wearing gloves and wet finger
Surface Hardness7H

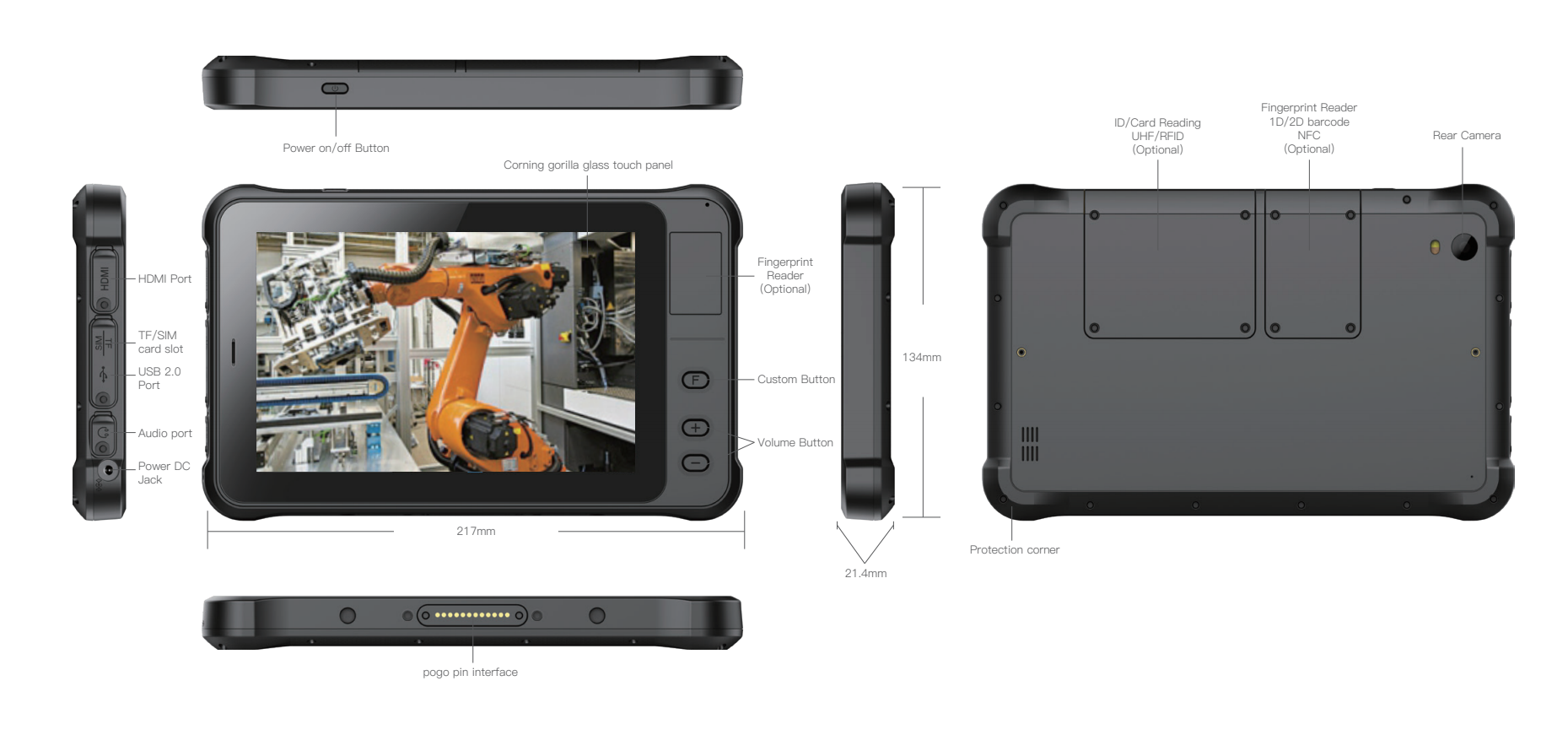

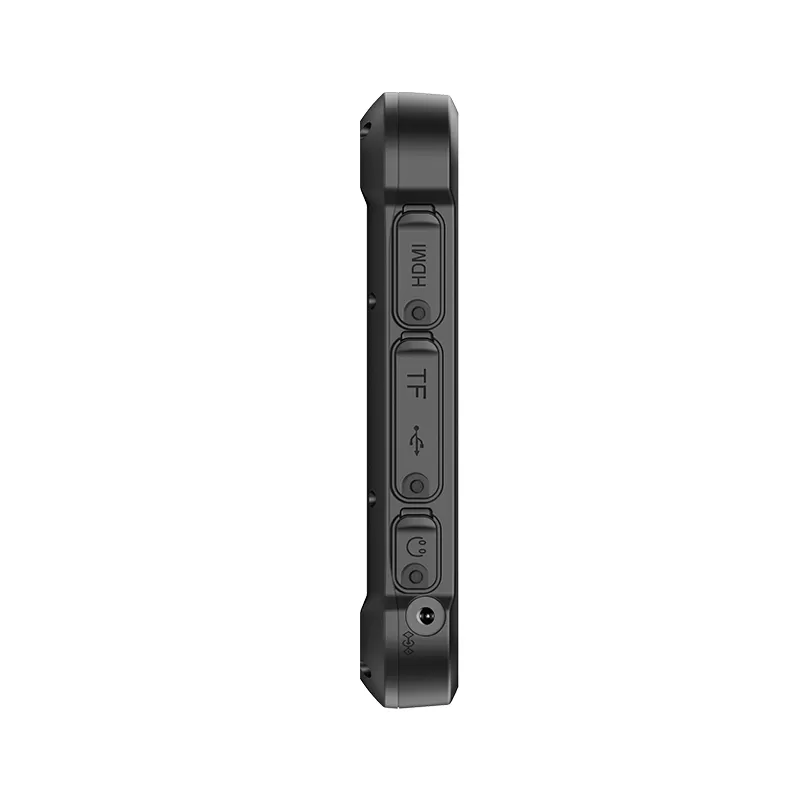

                                                                        Interface
USB1*MicroUSB, 1*Android OTG
Pogo Pin1*12pin  Pogo Pin
Audio Output1*3.5mm
HDMIHDMI 1.4a Type C*1
TF Slot1*TF Slot, max: 128G
SIM1*SIM
Power1*DC 5V 3A, Optional: Overvoltage protection of circuit,Max DC24V
OTG CableUSB OTG to MICRO USB cable length: 45mm
USB CableUSB to micro 5P L=1.2M  4core aluminum foil shield cable
                                                                  Power Supply
Power AdaptorAC100V ~ 240V, 50Hz/60Hz, Output DC 5V/3A
BatteryRemovable Li-polymer battery
Capacity: 3.7V/7500mAh
nearly 6hours(50% volume sounds, 50% brightness, 1080P HD video display by default)
                                                               Operating Environment
IP gradeIP65 waterproof
Drop Height1.22cm  composite wood floors, in operation status
Operate Temperature-20 °C to 60 °C
Store Temperature-30 °C to 70 °C
HumidityHumidity: 95% Non-Condensing
                                                                 Packing Details
Net weight707g
Gross weight1294g
Product Dimension216.98*133.96*21.4mm
Packing size325*162*61mm
                                                                       Other
Warranty1 year warranty
CertificateCE, FCC, RoHS
ColorBlack
                                                           Module extension (Optional)
One-dimension barcodeN 4313, Optical resolution: 5mil, Scan speed: 50 times/s, Code system:UPC/EAN, Bookland EAN ,UCC Coupon Code,ISSN EAN,Code 128,GS1-128,ISBT 128,Code 39,Trioptic Code 39 ,Code 32,Code 93  ,Code 11
Two-dimension barcode Honeywell N3680 hardcode/ Optical resolution:5mil/ scan speed:50 times /s, Code system:PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode,QR Code, MicroQR, QR Inverse,Aztec,Aztec Inverses,Han Xin,Han Xin Inverse
FingerprintThe fingerprint module authenticated by Chinese Ministry of public security, support the collection of resident fingerprint which built in their ID card.
UHFM-550 UHF RFID slim all-in-one module.
ID Modulesupport reading the 2nd, the 3rd ID card information and the fingerprint information built-in.
                                                             Optional Accessories
AccessoriesDocking Charger, Hand-strap, Vehicle Mount, 5V3A Car Charge
