Rugged Terminal

Home > Products > Rugged Product > Rugged Terminal > 8 inch IP65 Android 11 13MP Capacitive rugged terminal with 6000mah battery

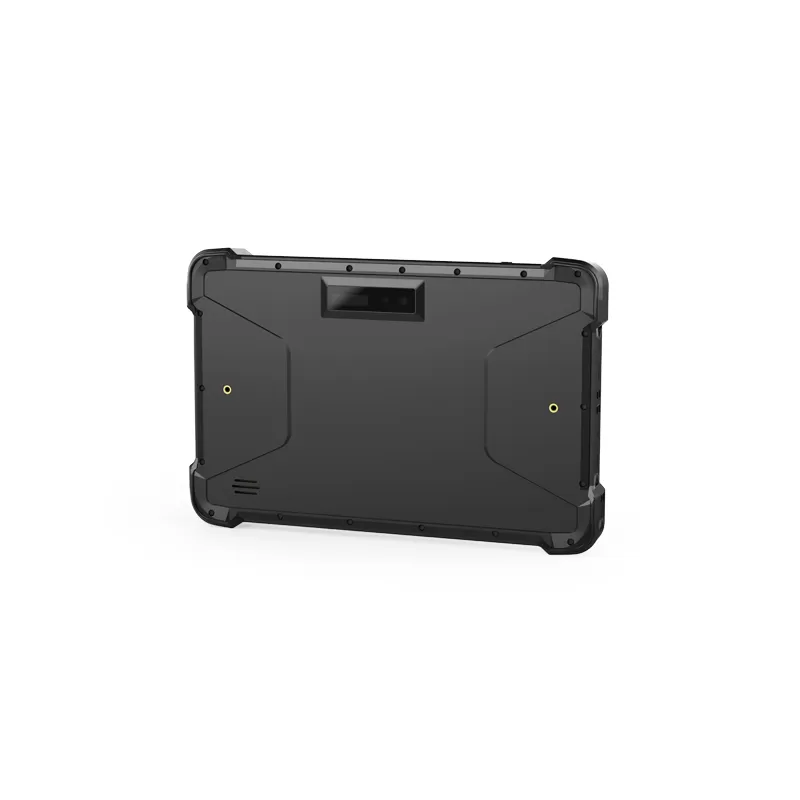

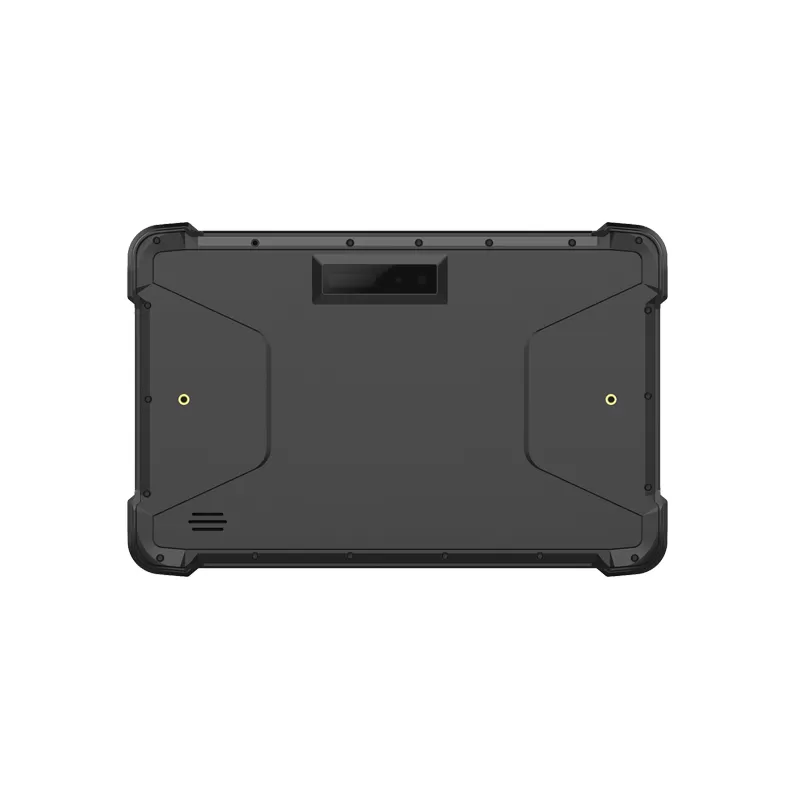

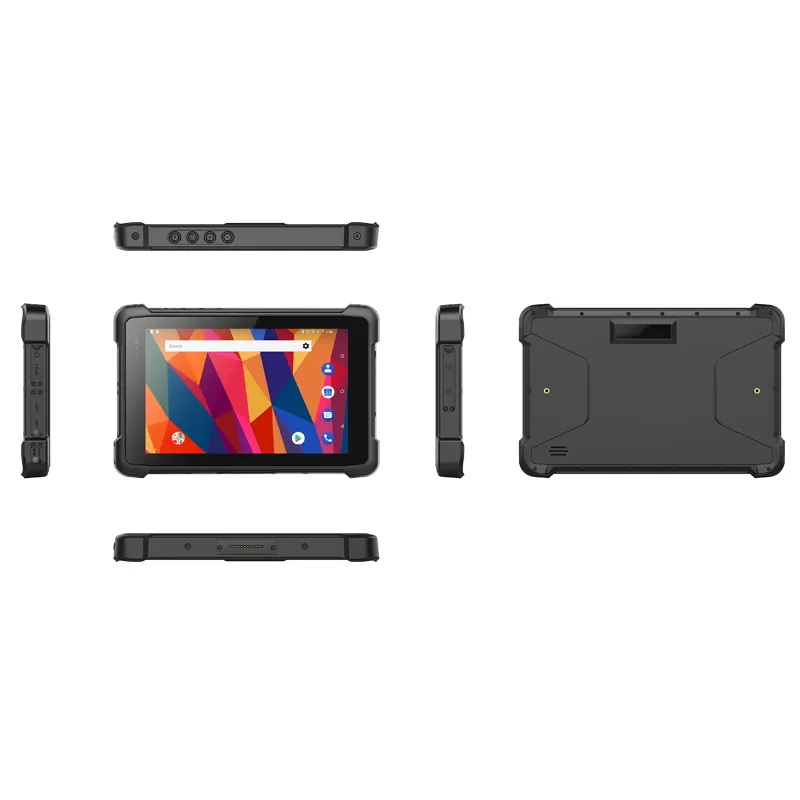

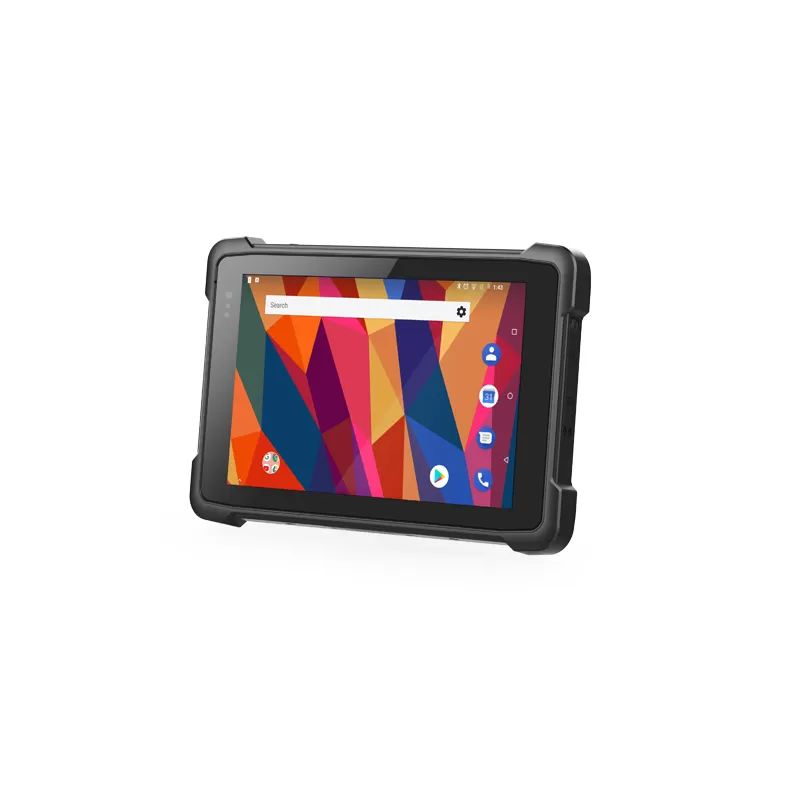

8 inch IP65 Android 11 13MP Capacitive rugged terminal with 6000mah battery

Model: SATA-T81EKP

Features:

• Support for Android 11 system.

• Integrated 3G/4G all network communication, WiFi, Bluetooth and other communication modes.

• 6000mAh battery, 6 hours of machine endurance.

• IP65 high protection level, in accordance with MIL-STD-810G.

• Support GPS, Glonass, Beidou, more accurate positioning.

• Support 13 million pixel auto focus camera, easy to collect images and video information.

• Support 1D/2D, NFC and other functional modules for free selection.


                                                                       PC
CPUMTK(Octa-Core), 2.0GHz
OSAndroid 11
RAM6GB
ROM128GB
                                                              Network connections
WIFI2.4G+5G dual frequency, WiFi 802.11(a/b/g/n/ac)
BluetoothBT4.2 (BLE)
3G/4GLTE Cat 7
GSM & WCDMA & TD-S(B34, B39)
TDD (B38, B39, B40, B41)
FDD (B1, B2, B3, B4, B5, B7, B8, B17, B20, B28a&b)
                                                              Basic parameters

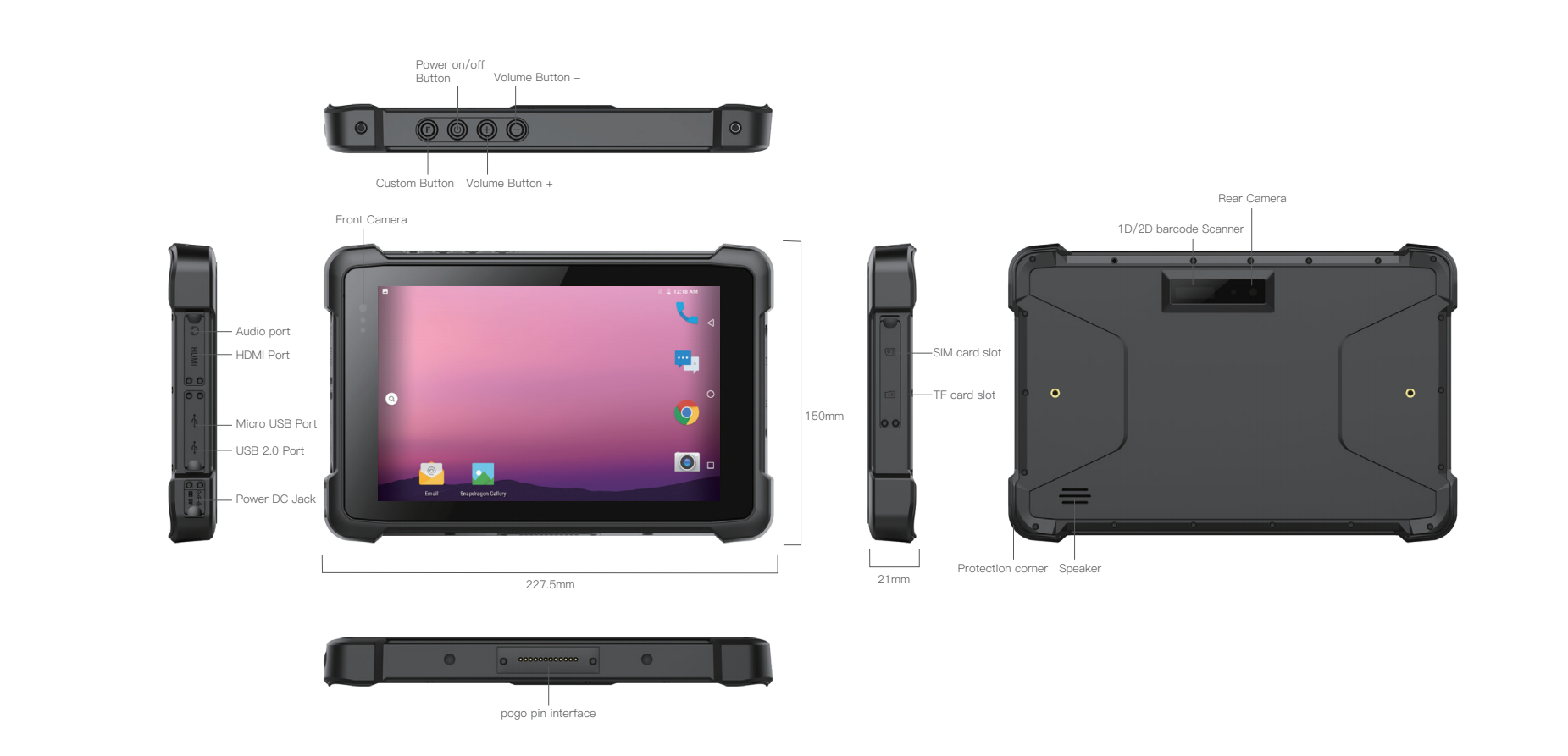

Dimension227.5 x 150 x 21mm
WeightDevice unit 680g
Device ColorBlack
LCD8 inch IPS 16:10, 800*1280
Touch Panel5 points Capacitive, G+G
CameraFront 5.0MP Rear 13.0MP
I/OUSB 2.0 x 1, Micro USB x 1
SIM Card x 1, TF Card x 1
HDMI 1.4a Type C x 1
12pins Pogo Pin x 1
Φ3.5mm standard earphone jack x 1
Φ3.5mm DC jack x 1
PowerAC100V ~ 240V, 50Hz/60Hz output DC 5V/3A
GPSSupport GPS, Glonass
                                                                      Battery
Capacity3.7V/6000mAh
TypeBuilt in polymer lithium ion battery
Endurance5.5hrs (50% volume sounds, 50% brightness, 1080P HD video display by default)
                                                                  Reliability
Operate Temperature-10 °C ~ 50 °C
Store Temperature-20 °C ~ 60 °C
Humidity95% Non-Condensing
IP GradeIP65
                                                            Optional modules
NFCSupport ISO/IEC 14443A protocol, Card reading distance: 3-5cm
1DMOTO SE655E100R, Optical Position: 5mil, Scan speed: 50 times/s
2DHoneywell N3680, Optical Position: 5mil, Scan speed: 50 times/s


8 inch IP65 Android 11 13MP Capacitive rugged terminal with 6000mah battery
