Features:

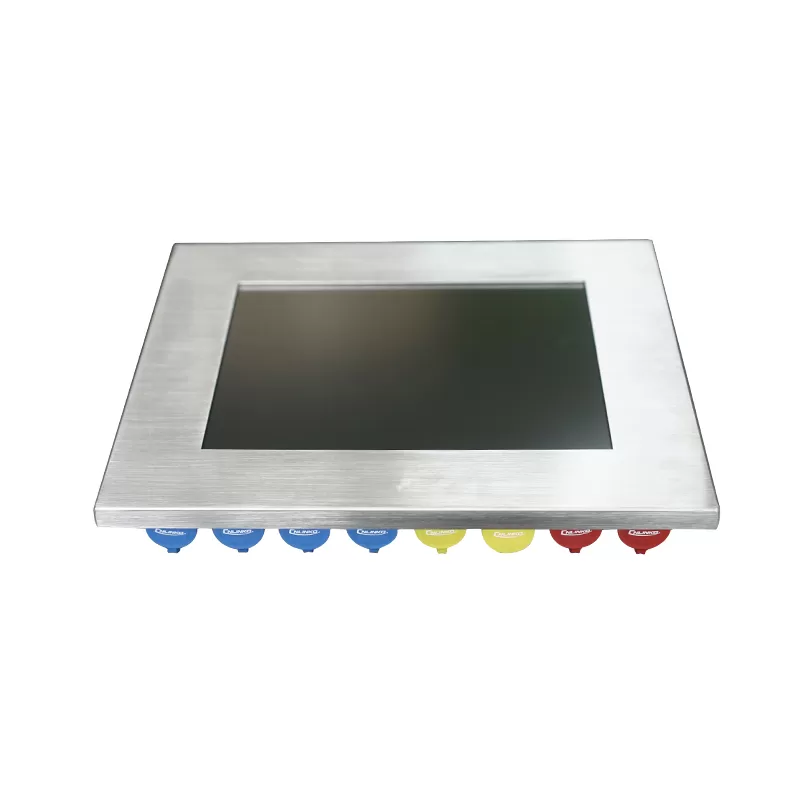

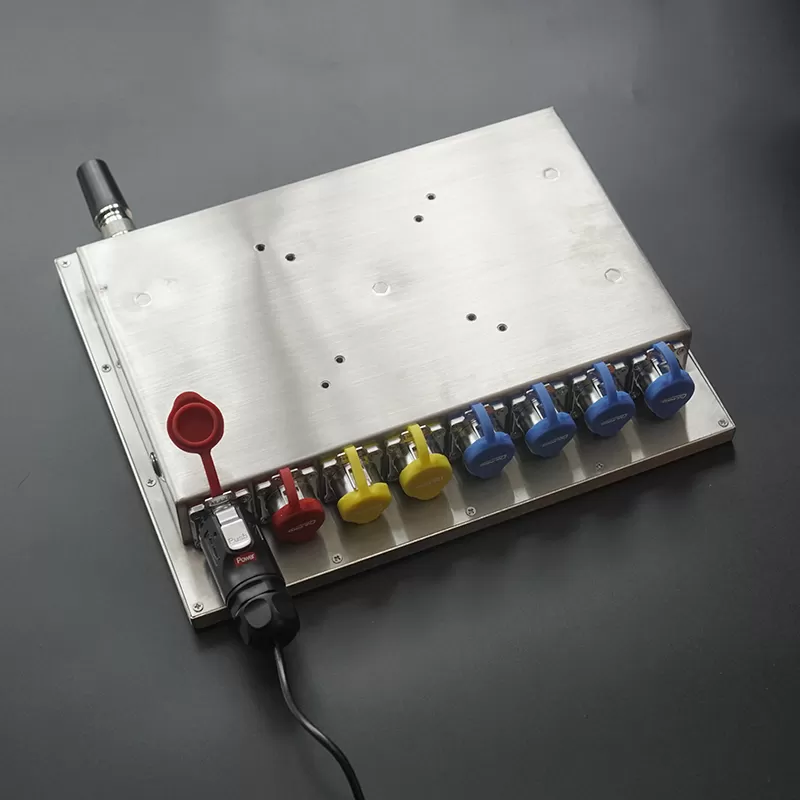

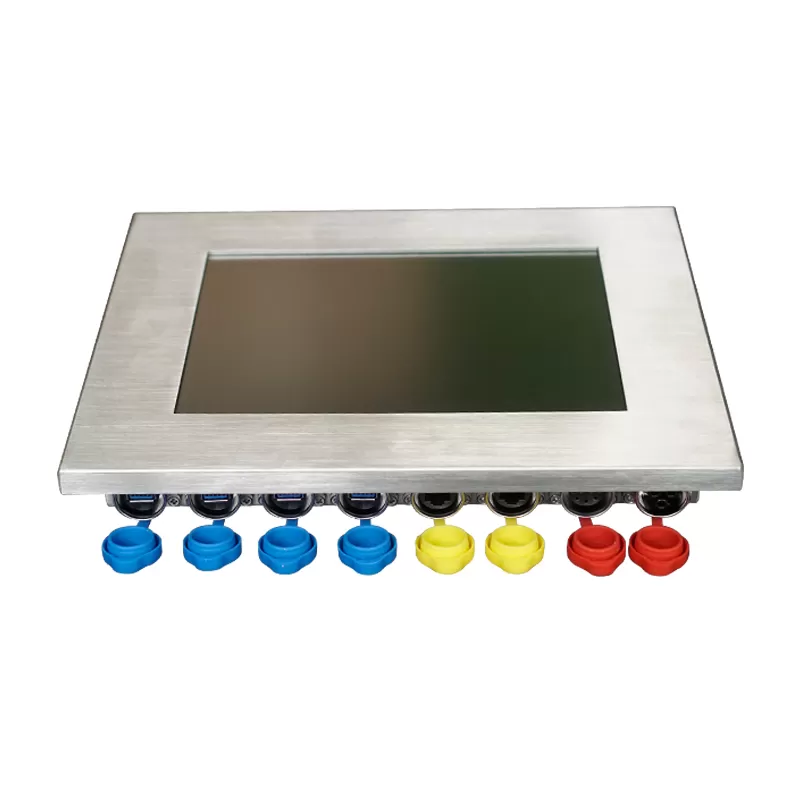

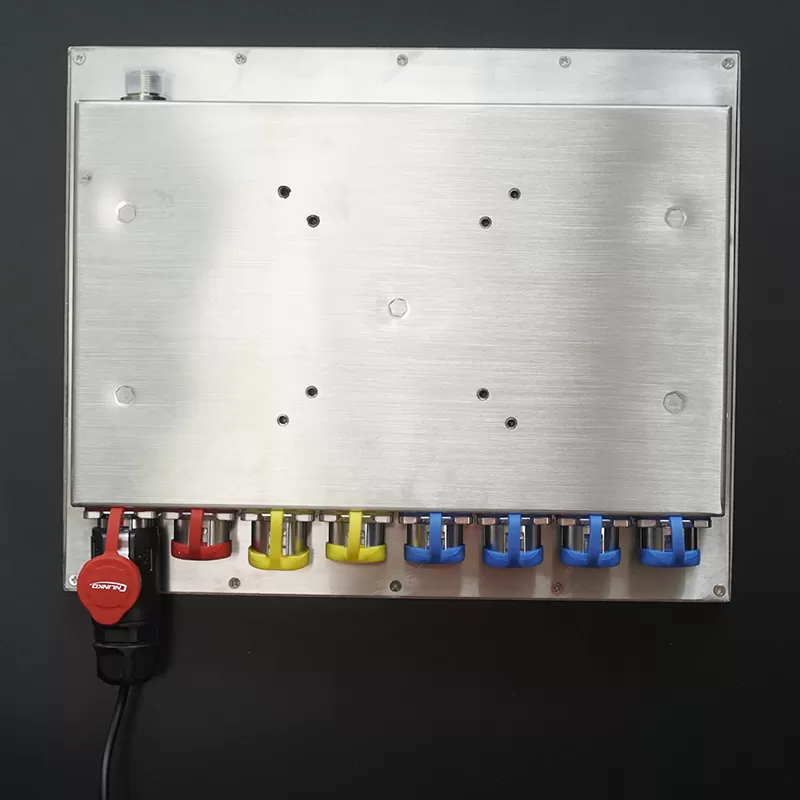

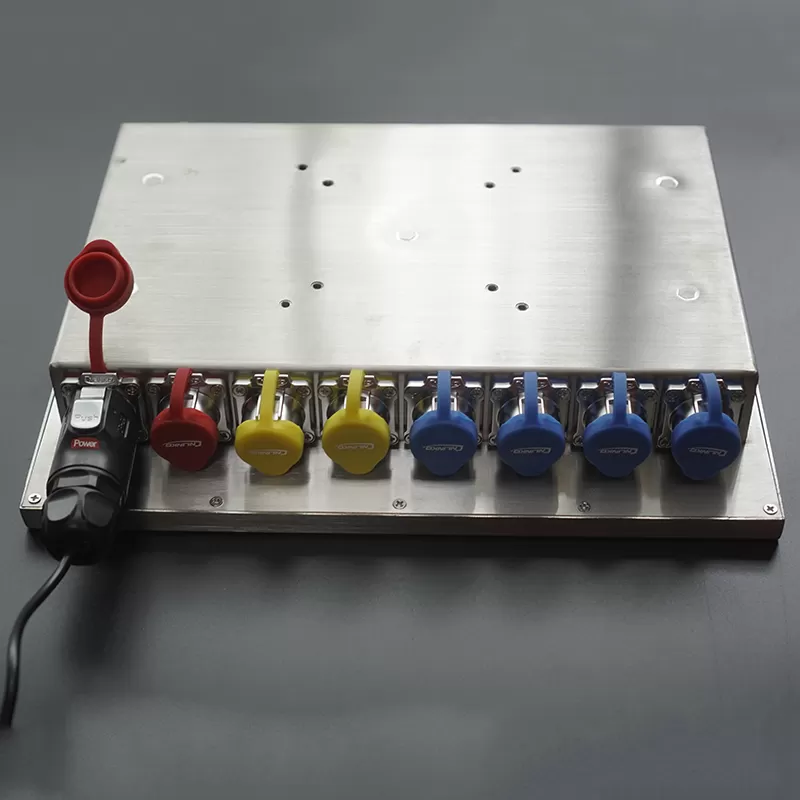

1. IP65 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 10 points PCAP touch panel, high sensitive and fast-response.
4. High performance motherboard, 7x24 continuous operation.
5. Full sealed and fanless design, Full IP65 waterproof, 1000 nits sunlight readable.
| PC | |
| CPU | Intel® Core i3-4010U, dual core, 1.7GHz |
| Memory | 4G DDR3 (8G Optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI |

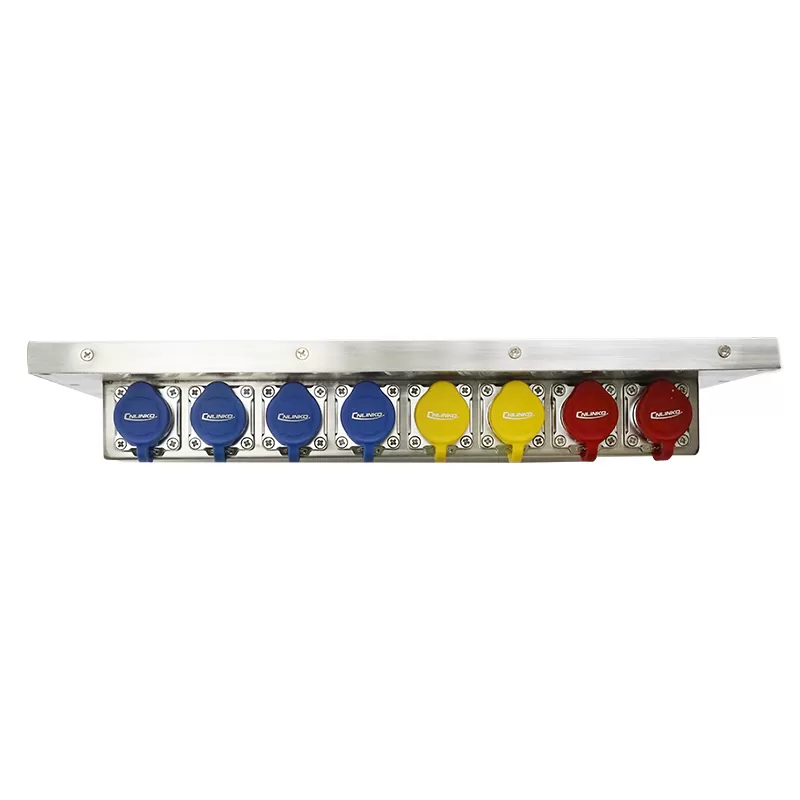

| I/O Interface | 4*USB+2*LAN+1*RS232 |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian etc. |
| LCD panel | |
| Panel size | 10.4" |
| Resolution | 1024x768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable (400 nits Optional) |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wires resistive touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 12V (9-36V wide voltage Optional) |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel case 304 |
| Color | Silver |

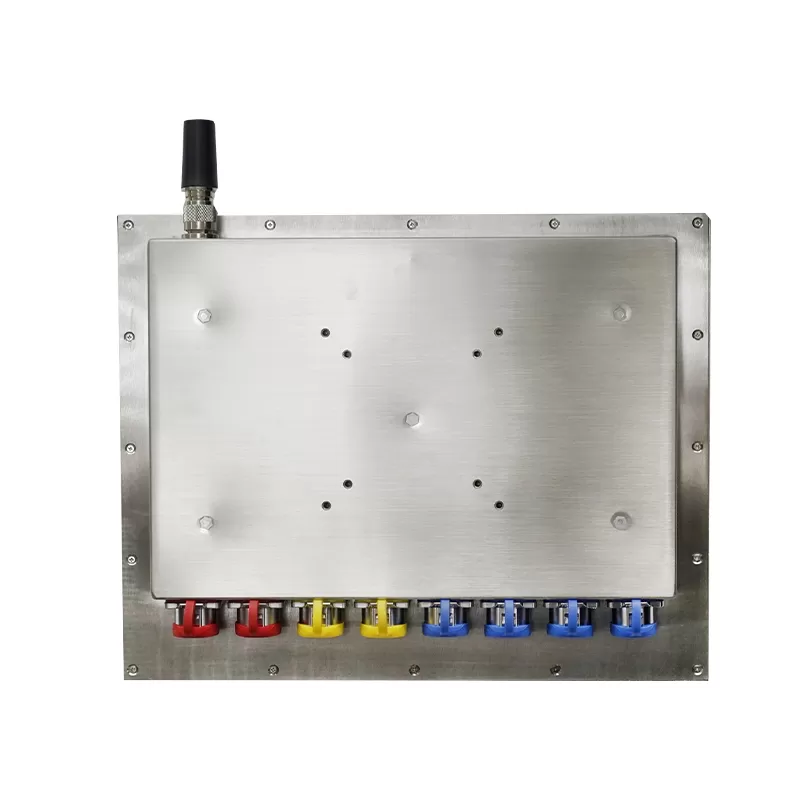

| VESA mounting | 75×75mm/100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 5.5kgs |
| Gross weight | 7kgs |

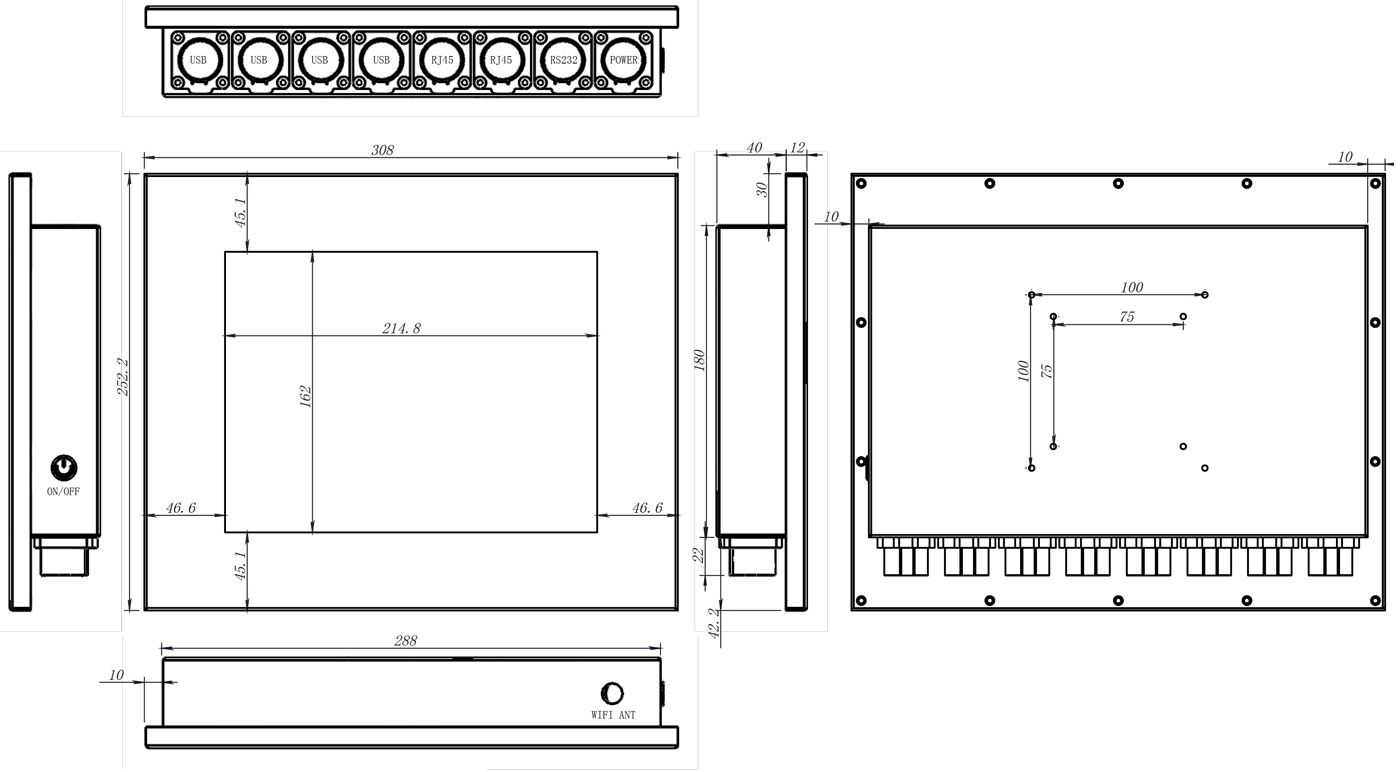

| Product Dimension | 30.5×25.22×5.2cm |
| Packing size | 44×35×17 cm |
| Accessories | Power adapter, waterproof RS232/LAN/USB cable, power cord |
| Other | |
| Mounting (options) | 1) Provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Certificates | CE, FCC, RoHs |
| Warranty | 1 year warranty |
