Model: SATA121XW
Features:

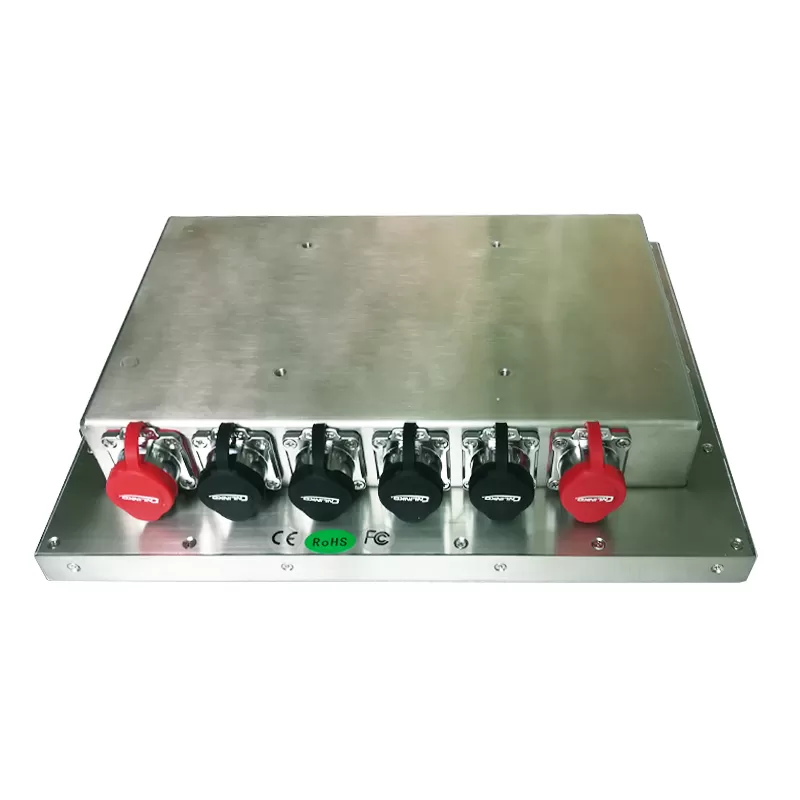

1. IP67 sealed stainless steel enclosure including I/O.

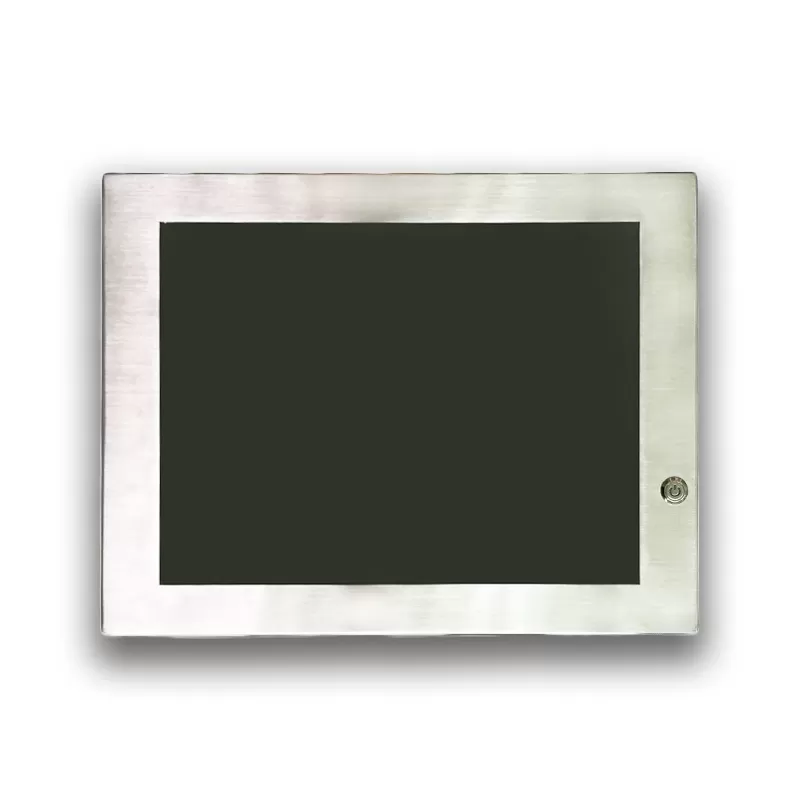

2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
4. Power button on front bezel.
5. High performance motherboard, 7x24 continuous operation.
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (8G Optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1xRealtek RTL 8111E Gigabit Ethernet controller |
| Wireless Network | WIFI Optional |

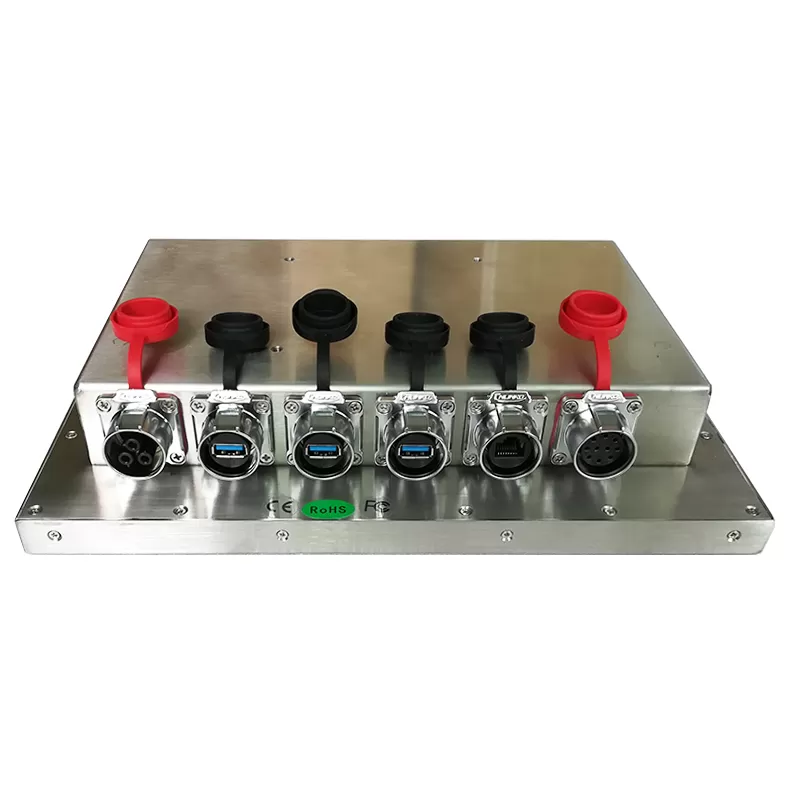

| I/O Interface | 3xUSB3.0, 1xCOM RS232 |
| 1xRJ45, 1xPOWER DC | |
| Operation System | Support Windows 7/8/10, Linux, Ubuntu, Debian, etc. |
| LCD panel | |
| Panel size | 12" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits (1000 nits, sunlight readable Optional) |
| Response time | 5ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 5-wire Resistive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 3H |
| Working Life | >35 million times |
| Touch options | (Capacitive touch, non touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | DC 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel 304 |
| Color | Silver |

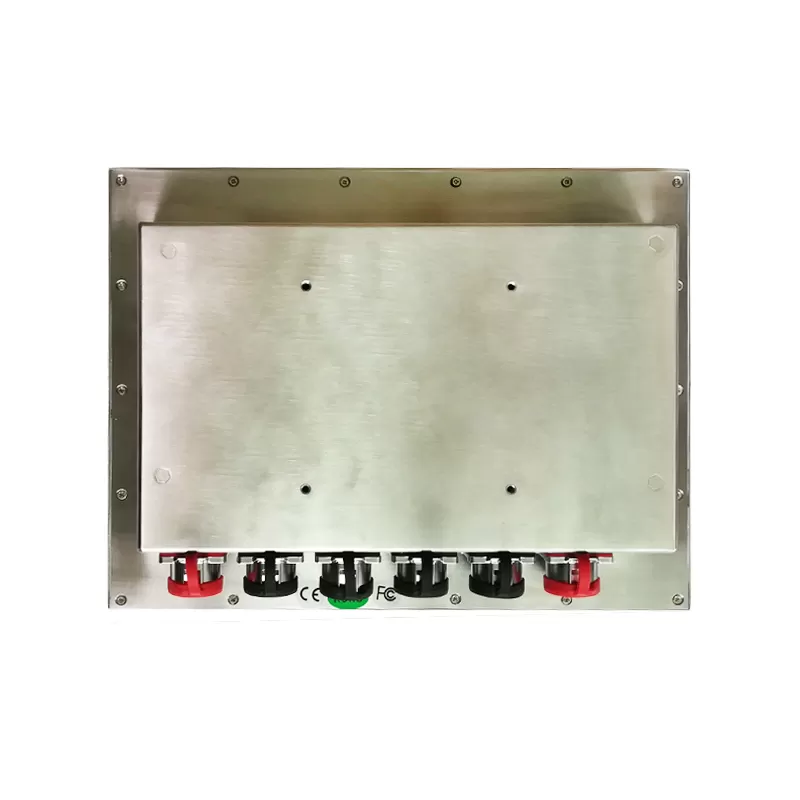

| VESA mounting | 100x100mm |
| IP grade | Full IP67 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -10 to 60°C, storage: -20 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 5.5kgs |
| Gross weight | 7kgs |
| Product Dimension | 30.64x23.64x6.5cm |
| Packing size | 43x38x18cm |
| Accessories | Power adapter, power cord,waterproof RS232/LAN/USB cable |
| Other | |
| Mounting (options) | Embedded mounting screws |
| Wall mounting brackets (optional) | |
| Desk stand holder (optional) | |
| Warranty | 1 year warranty |
| Certificate | CE, FCC, RoHS |
