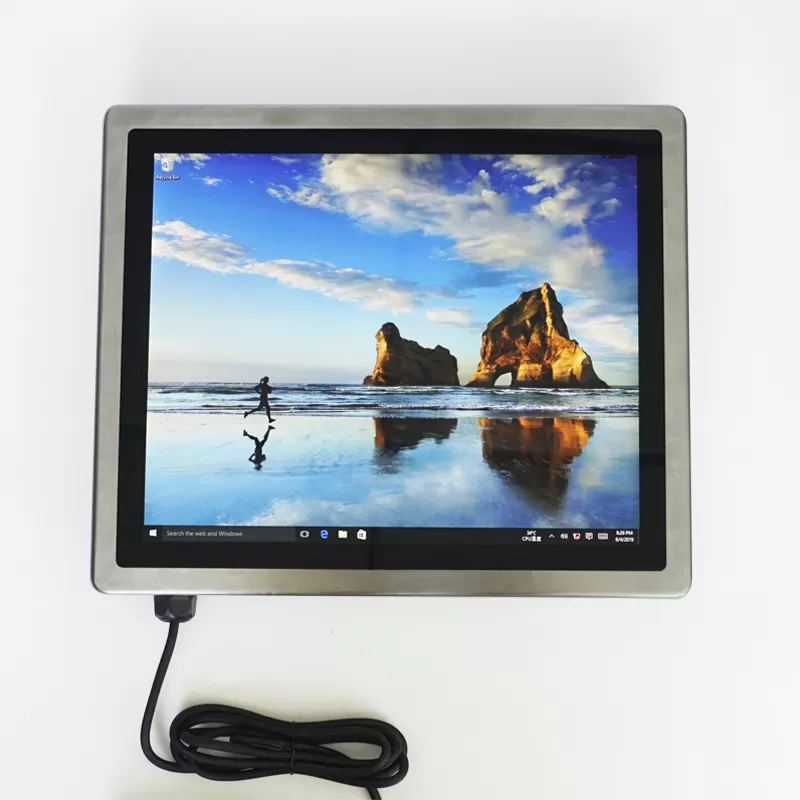

Features:
1. Full IP65 sealed stainless steel 304 enclosure, true flat panel design, round corner design.
2. With air valve, keep air pressure balance inside and outside, anti fogging.
3. Industrial LCD panel, wide viewing angle, high nits, true color.
4. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with 2mm tempered glass for vandalproof.
5. EETI waterproof solution.
6. High performance motherboard, fanless design, 7x24 continuous operation.
| PC | |
| CPU | Intel® Celeron J1900, quad core, 2.0GHz, fanless |
| Chipset | Intel ValleyView SSA-CUnit |
| Memory | 4G DDR3 (8G Optional) |
| Hard Drive Capacity | 64G SSD |
| Hard Drive Optional | SSD: 128GB, 256GB, 512GB |
| HDD: 500GB, 1TB | |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | Onboard Realtek RTL 8111E Gigabit Ethernet controller |
| I/O Interface | 3*USB+1*LAN+1*RS232+1*DC |
| Operation System | Support Windows 7/8/10, Ubuntu, Debian, Fedora and etc. |
| LCD panel | |
| Panel size | 15" |
| Resolution | 1024*768 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 400 nits |
| Response time | 10ms |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | <8ms |
| Luminousness | 90% |
| Surface Hardness | 7H |
| Working Life | >50 million times |
| Touch options | ( 5 wires resistive touch Optional) |
| Power Supply | |
| External Power Supply | AC 100-240V |
| Working voltage | 12V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel case |
| Color | Silver |
| VESA mounting | 100×100mm |
| IP-grade | Full IP65 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details | |
| Net weight | 6kgs |
| Gross weight | 9kgs |
| Product Dimension | 36.47×28.9×5.65cm |
| Packing size | 48×44×19cm |
| Accessories | Power adapter, waterproof RS232/LAN/USB cable, power cord |
| Other | |
| Mounting (options) | 1) Provide wall bracket for wall-mounting, VESA 100×100mm |
| 2) Provide stable metal holder to support the monitor | |
| Certificates | CE, FCC, RoHs |
| Warranty | 1 year warranty |
