Model: SATA201MS
Features:
1. Stainless steel 316.
2. Industrial 20.1'' LCD panel, 1600*1200 resolution, wide viewing angle, high nits, true color.
3. Adopt 10 points Capacitive touch panel, stable, durable, anti-interference.
4. High performance mainboard, 7x24 continuous operation.
5. Wide voltage support: 9V-36V.
6. 4MM Tempered glass.
7. Coating on PCB Board.

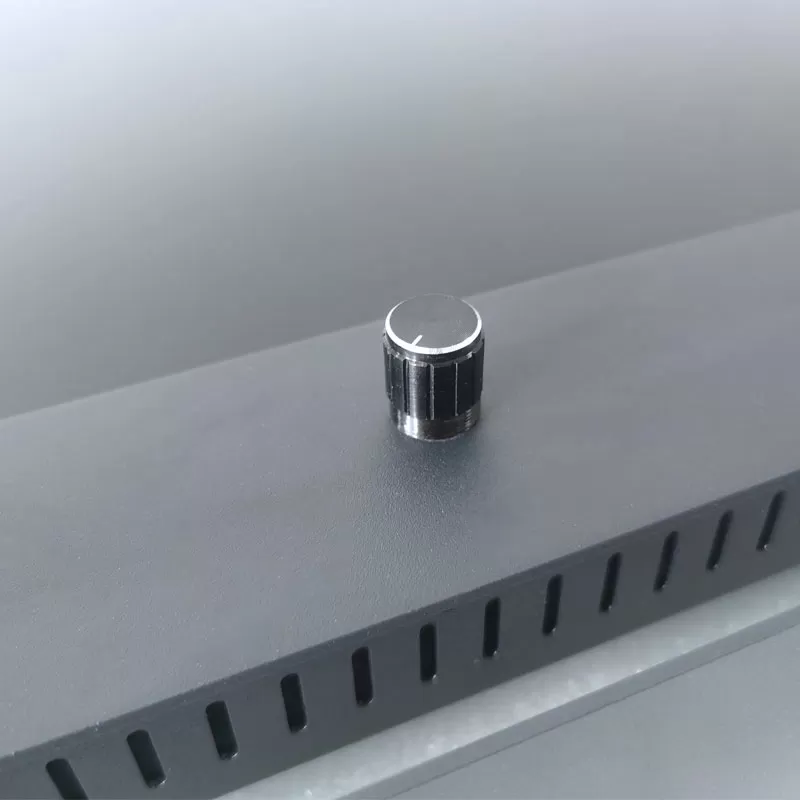

8. Rotational brightness knob on front bezel, With desktop stand, black nailpaint on all screws, and with stop slice
9. Support wall mounting, desk stand mounting etc.
| LCD panel | |
| Panel size | 20.1" |
| Resolution | 1600*1200 |
| Aspect ratio | 4:3 |
| Support Color | 16.7M colors |
| Brightness (cd/m²) | 1000 nits, sunlight readable |
| Contrast ratio | 1000:1 |
| View angle | 80°/80°/80°/80° (R/L/U/D) |
| Touch panel | |
| Touchscreen Type | 10 points Capacitive touch |
| Surface Hardness | 7H |
| Luminousness | 90% |
| Touch Interface | USB (RS232 Optional) |
| Touch response time | 2ms |
| Working Life | >50 million times |
| Touch options | (Resistive touch, non touch Optional) |

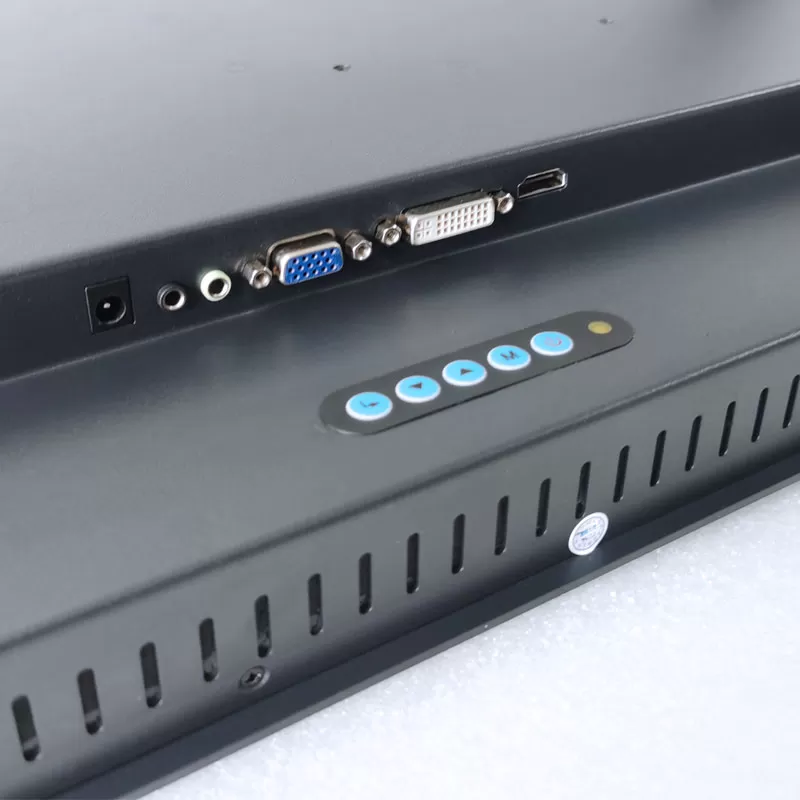

| Signal Ports | |
| VGA | 1x VGA |
| HDMI | 1x HDMI |
| Audio in/out | Optional |
| OSD | |
| OSD control | Brightness, contrast ratio, auto adjustment, H/V position, language select, etc. |
| Support languages | English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese, etc. |
| Support OS | Windows XP, Windows 7/8/10, Linux, Mac OS X, Android and etc. |
| Power Supply | |
| External Power Supply | AC 100 - 240V, 50-60Hz |
| Working voltage | 9V-36V |
| Power consumption | ≤45W |
| Enclosure | |
| Material | Stainless steel 316 |
| Color | Black |
| VESA mounting | 100x100 mm |
| IP grade | Front panel IP67 waterproof |
| Operating Environment | |
| Temperature Range | Operating: -20 to 70°C, storage: -30 to 80°C |
| Relative humidity | Operating: 10% to 80%, storage: 5% to 90% |
| Packing Details | |
| Net weight | 7 kgs |
| Gross weight | 8 kgs |
| Product Dimension | 49x40x7.5 cm |
| Packing size | 66*45*19 cm |
| Accessories | Power adapter, power cord, USB touch cable, HDMI/ VGA cable, embedded screws |
| Other | |
| Mounting | Desktop stand |
| Wall mounting brackets(Optional) | |
| Warranty | 1 year warranty |
| Certificates | CE, FCC, RoHS |
